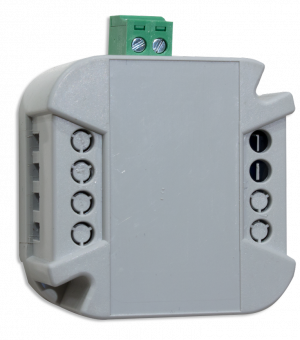

CANx 1 x 6A Relay / 1 x PT1000 Sensor Input
Hover over image to zoom
Embedded Systems
Price on request
SKU:
CAN-R1-PT1000
Weight:
0.30 KGS
Availability:
5 - 10 Days Lead Time
Product Description
CANx 1 x 6A Relay / 1 x PT1000 sensor input flush-mounted device is applicable in floor heating applications. It is equipped with resistive temperature sensor input and relay for AC/DC circuit commutation. The configuration and monitoring of the device is done through separate LogicMachine CANx application. The device is designed for flush-mounting.
Highlights
- 1 x 6A relay
- 1 x PT1000 sensor input
- 1 x CAN FT
- Flush-mounted
- CANx configurator is freely available from LM app store
Technical Details
| Power supply | 12-32V DC |
| Power consumption (at 24V) | 11 mA |
| DC overvoltage protection | 50 V |
| Wrong wiring polarity protection | Yes |
| Interfaces & Operating Elements | |
| Relays | 1 |
| Rated voltage/current | 250V AC (10 A), 30V DC (5 A) |
| PT1000 temperature sensor input | 1 |
| USB | 1 microUSB for upgrade firmware flashing |
| CAN FT | 1 |
| LED | 1 – CPU load, 1 - Error |
| Programming/reset button | 1 |
| Clamps & Enclosure | |
| CAN FT Terminal | 0.8mm2 |
| Relays | 5 mm2 |
| Power supply | 5 mm2 |
| Color | Black / Gray |
| Dimensions | 53(W)x25(H)x43(L) mm |
| Protection | IP20 according to EN 60529 |
| Usage temperature | -5C ... +55C |
| Storage temperature | -20C ... +70C |
| Net weight | 40 g |
