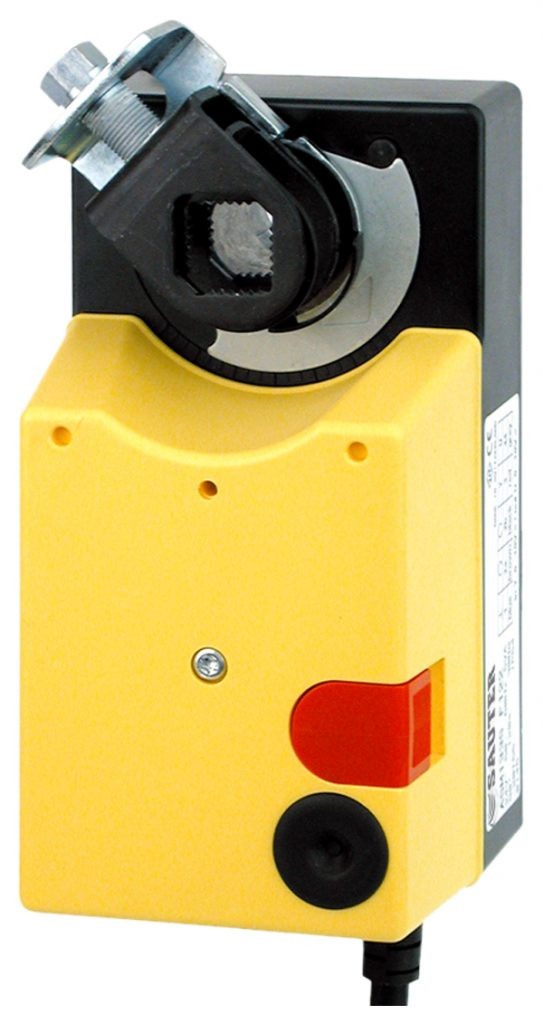

ASM124 Damper Actuator - ASM124F120 / ASM124F120

Hover over image to zoom

  • Image 1
RRP: £289.09
£240.91 (inc VAT) £240.91 £200.76 (exc VAT) (You save £48.18)
ASM124F120 / ASM124F120
1.50 KGS
5 days lead time

 Product Description

How energy efficiency is improved
Torque-dependent cut-off facility for efficient usage of energy


- For operating air dampers, shut-off dampers, butterfly valves and multi-leaf dampers
- For controllers with switching (2- and 3-point) output
- Synchronous motor with electronic activation and cut-out
- Maintenance-free gear unit
- Electronic end position detector and motor cut-off
- Self-centring spindle adapter for fitting onto damper spindle
- Gear unit can be disengaged to position the damper and for manual adjustment
- Suitable for all fitting positions
- Threaded holes (M5) for fitting to bracket
- Version with halogen-free cable on demand

Technical Details

Power Supply
Power Supply 230 V~ ±15%, 50...60 Hz
Power Supply 24 V~ ±20%, 50...60 Hz
Torque and Holding Torque 18 Nm
Running Time for 90° 120 s
Angle of Rotation Max. 95°
Admissible Damper Shaft Ø 12...20 mm, □ 10...16 mm
Admissible Damper Shaft (Hardness) max. 300 HV
Operating Noise < 30 dB (A)
Response Time 200 ms
Ambient Conditions
Admissible Ambient Temperature –20...55 °C
Admissible Ambient Humidity < 95% rh, no condensation



Type Voltage Power Consumption
ASM124F120 230 V~ 2.9 W, 5.6 VA
ASM124F122 24 V~ 2.3 W, 2.4 VA



Fitting Instruction
Fitting Instruction
