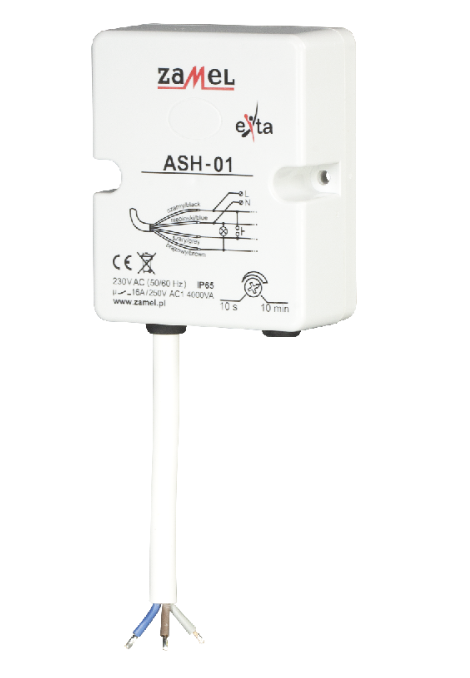

The staircase lighting time delay switch ASH-01/U is used to control lighting devices on staircases and corridors.

After releasing the system it switches on the lighting for the preset time by the user. After that it switches off automatically. The operating time can be adjusted from 10 sec to 10 min by means of a potentiometer.

The staircase lighting time delay switch ASH-01/U can be used as standard time delay relay.

The hermetic casing (IP65) secures the device functioning in unfavorable weather conditions.

Features

- Operating time adjustment from 10 seconds to 10 minutes
- Cable connection 0,5m length
- Relay output – one switch contact of maximum relay capacity 16A
- Universal supply voltage 12÷240 V AC/DC
- Relay output - 1 voltage contact contact max 16 A capacity
- Cooperation with 3- or 4-wires installation
- Hermetic casing (IP65)
