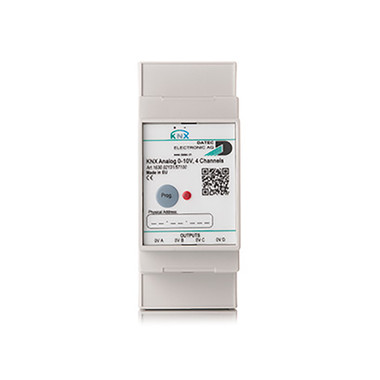

The Analog output 0-10V, 4 channels, is controlling 4 single 0-10V outputs.
It act as an interface between the KNX bus, the worldwide standard for home and building automation, and devices controlled by 0-10V signals.
These are used, for example, to control analog 0-10V valves, in accordance with the requirements of room control units, mainly in cooling or heating applications in offices, hotel rooms, however, also other applications are possible, like controlling fans, ventilation flaps, audio volume etc.
Each Output can source up to 2mA, has a built in current limitation and an overvoltage protection. Moreover, the outputs are isolated from KNX-Bus with 4kV isolation.
The needed energy to power the device is drawn exclusively from the KNX bus, so no supplementary power supply is required.

Features

- 4 channels with analog 0-10VDC source output
- To be mounted on 35mm DIN Rail
- Powered by KNX bus
- Outputs isolated from KNX bus
- Operating temperature -5°C … +45°C
- Housing 36mm (2 units) x 90 x 60mm
