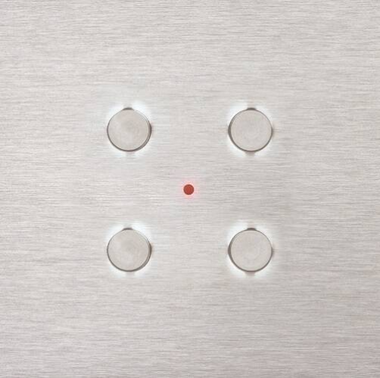

ZITA CARRE - 4 PUSH-BUTTONS KNX WITH LEDS INTEGRATED TEMP & HUMIDITY SENSOR

4 push-buttons
4 white LEDs
1 central red LED
Integrated temperature & humidity sensor

Functionalities:

- Night & Day LED-indicators brightness adaptability
- Pressing button, 1 object: ON, OFF, TOGGLE, 1Byte values, 2Byte values, 4Byte values
- Pressing button, 3 objects: ON, OFF, TOGGLE, 1Byte values
- Pressing and releasing button, 2 objects: ON, OFF, TOGGLE, 1Byte values, 2Byte values
- Short and long keystroke, 2 objects: ON, OFF, TOGGLE, 1Byte values, 2Byte values
- Dimming and Blind/Shutter processing
- Scenarios run and save ability
- LED Staircase function, on/off delay, scenarios attribution
- Basic logical functions (AND, OR, XOR, NOT) based on 2 entries
- RGB lights programming functionality
- Blinking of leds
- Optional: Integrated Temperature and Humidity sensor

Technical data:

Main power supply: 24V – 29V via KNX Bus
Current consumption:
- 4 buttons, all LEDs 100% = 10mA (29V)
- 4 buttons, all LEDs 10% = 4mA (29V)
Connection: std. WAGO KNX connector
Operating temperature: -5°C … 45°C
KNX programming button and LED = rear side
Max. group addresses = 86
Max. associations = 86
Number of comm. Objects = 71
Application download time = approximately 30 sec
