Functionality

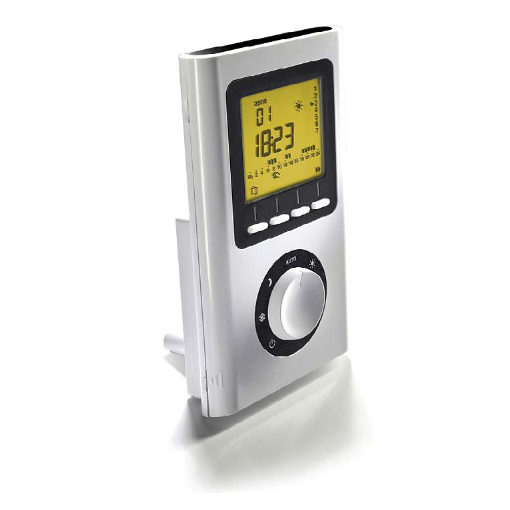

The TTIR is a weekly portable or wallmounted programmable controller. It allows you to adjust the temperature through a range from 10°C to 30°C in steps of 0.5°C. It displays both the current time and temperature as well as the set temperature. The TTIR allows you to set an economical and a comfortable temperature level controlled in two modes, manual and automatic. You are able to manually calibrate the temperature sensor of the TTIR if required.

Timer and Dryer

The weekly timer function allows you to program your desired ‘heating time profiles’ in certain modes throughout the 7 days of the week. There is also a dryer function that allows a timed operation from 15 minutes up to 4 hours.

Remote control

The TTIR works wirelessly with a range of Terma heating elements and controllers that are equipped with an IR receiver (ONE and KTX 4). The TTIR can control multiple heating elements in one room.

Intelligent Building Systems

The TTIR is a battery powered device and does not require an external power supply.

Safety

The TTIR is equipped with a ‘frost’ protection mode (ANTIFREEZE) to protect the radiator from the effects of freezing.

Design

An elegant white body gives the TTIR a modern look and provides the perfect backdrop for an elegant amber display.

Features & Functions

- Remote control of KTX 4 and ONE heating elements
- Multifunction weekly timer
- Ambient temperature sensor
- Dryer function
- Current time display
- ECO, COMFORT and LONG ABSENCE modes
- Elegant amber display
- Lightweight and portable
- Can control a number of heating elements simultaneously
- Can be mounted on the wall or put on a shelf
