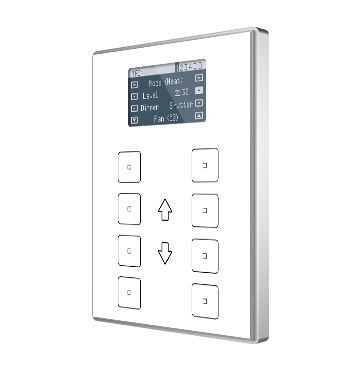

TMD-Display View is a room controller with a 1.8” backlighted display that will cause the desired aesthetic impression in any ambience. It is able to manage climate, audio, shutters, lights… thanks to its 32 functions distributed in up to 4 pages accessible by pressing or sliding on the central area of the panel. TMD-Display View also includes thermostat function, internal temperature probe and two analog/digital inputs for great functionality. Its customization is based on a professional printing on a high-strength tempered glass.

Zennio Online TMD Designer: link

Features

-  Printout glass with touch surface.
-  Completely customized image for printout glass, through a web application.
-  1.8” back-lighted display (128 x 64px) with menu pages.
-  8 main touch areas and a central touch control.
-  2 analog/digital inputs.
-  No power supply different from the KNX bus needed.
-  Thermostat.
-  Temperature sensor.
-  State LED indicators with custom luminosity.
-  Integrated KNX BCU.
-  Magnetic fit with security mechanism to avoid accidental extraction. Metallic stand included.
-  Total data saving on KNX bus failure.
-  Conformity with the CE directives (CE-mark on the back side).

Downloads

Datasheet
Manual
ETS File

Accessories

- SQ-AmbienT (Ref. ZAC-SQAT-W/S/A)
- Temperature probes (Ref. ZAC-NTC68(S/E/F))
- Motion detector - X (Ref. ZN1IO-DETEC-X)
