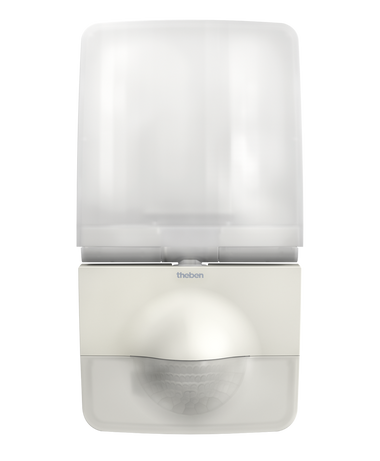

theLeda P12 WH
Hover over image to zoom
Theben
Product Description
Function Description
- LED spotlight with motion detector
- 11 W (900 lm), equivalent to 140 W Halogen spotlight
- Spotlight can be swivelled 35° left/right, 60° upwards/downwards and 180° backwards
- Spacer included in delivery
- Suitable for outdoor use
- Automatic lighting control based on presence and brightness
- 180° detection angle at a detection range of 12 m and creep under protection
- Diffused glare-free light with aura effect
- Functions teach-in, test, twilight switch, dimmable orientation light and night interruption adjustable
- Master/master switching
- Area limit via lens attachment
- Controls are place protected
- Remote controllable with optionally remote controls theSenda P and theSenda S
- Back side made of high-quality aluminum die-cast for an optimally cooling of the high-power LEDs
Technical Details
| Operating voltage | 230 V AC |
| Frequency | 50 60 Hz |
| Stand-by consumption | ~0.4 W |
| Light measurement | Mixed light measurement |
| Colour | White |
| Switching output | Light |
| Installation type | Wall installation |
| Setting range brightness | 5 800 lx or just presence dependent |
| LED output (lighting current) | 11 W (900 lm) |
| Colour temperature | 4000 K, neutral white |
| Detection angle | 180° |
| Installation height | 1.8 2.5 m |
| Light switch-off delay | 10 s-20 min |
| Remote controlled | |
| Ambient temperature | -25°C ... 45°C |
| Protection class | II |
| Type of protection | IP 55 |
Detection Area
| Mounting height (A) | Diagonally (t) | Head on to (R) |
| 2 m | 12 m | 5 m |
| 2.5 m | 10 m | 4 m |
| 3 m | 8 m | 4 m |
| 3.5 m | 6 m | 4 m |
| 4 m | 4 m | 4 m |
Downloads
Datasheet
Operating Instructions
Operating Instructions (mobile)
Accessories
Corner angle 10 WH - 9070969
Spacer 10 WH - 9070971
theSenda B - 9070985
theSenda P - 9070910
theSenda S - 9070911
