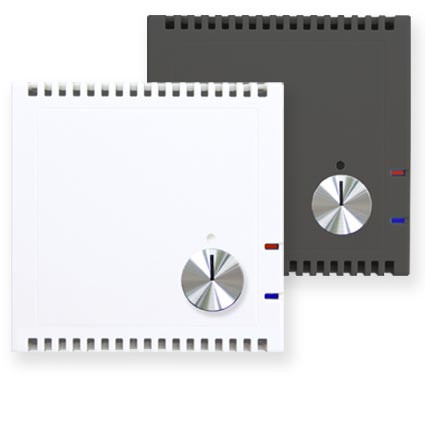

SK30-TC-VOC-R Rotary Temperature Controller with VOC Concentration and 2 Binary Contacts
Hover over image to zoom
Arcus
Product Description
The KNX-Sensor SK30-TC-VOC-R is used for measuring and controlling indoor air parameters.
Features
- Air temperature ( sensor in the housing ) also weighted with external temperature
- VOC level ( volatile organic compound ) ( sensor in the housing )
- Control functions for heating and cooling applications ( can be combined )
- Setpoint temperatures for Comfort, Standby, Economy and Protection, selectable via KNX HVAC objects
- Setpoint change via rotary controller and/or objects
- Storage of minimum- and maximum-temperature
- Heat- and frost-alarm
- Limits for temperature
- Fan control by VOC limits and external inputs
- Adaptation for setpoint and maximum temperatures
- Controller output 0…100% or programmable PWM for thermal actuators
- Valve rinse function
- Second temperature controller as auxiliary controller
Two binary inputs / outputs ( floating )
Rotary controller
- Light control as switch / button with short, long, double and both function
- Dimmer
- Blind and shutter control
- Programmable Encoder
- Temperature adjustment
- The binary inputs can be configured as outputs ( LED / Beeper )
- Rotary controller to change the operational state ( comfort / standby ) and increase / decrease the setpoint temperature in several steps
The current state of the temperature controller can be indicated by LED’s.
- Heating or cooling
- Slow pulsing if controller is active
- Pulse depth represents deviation between actual- and setpoint-temperature
- Display for comfort / standby / night mode configurable
Four logic blocks for the logical link between internal and external signals.
- 10 associated logic inputs / outputs
- Heat- and cooling-request as additionally available signals
- Functions "AND, OR, NOT, XOR" for binary logic
- Functions "+ - *" for 8-bit values
- Function "=" for conditional forwarding of events
Applications
- Detection and control of room temperature
- Detection of VOC level
- Decentralized control for steady KNX-valves or thermal actuators
- Decentralized ventilation control depending on air quality
- Evaluation of external switches and push buttons for switching functions
Technical Details
| Measurement: | Temperature VOC Concentration |
| Control: | Integrated |
| Temperature Range: | 0 .. +50°C |
| Accuracy: | ± 0,3°C |
| Resolution: | ± 0,01°C |
| Measurement Range VOC: | 450 - 2000 ppm CO2 equivalents |
| Rotary Controller: | Setpoint Adjustment ( max. ± 5°C ) |
| ( Binary In- / Output ) / Front Button: | 2 |
| Operating Voltage: | KNX Bus Voltage 21 .. 32VDC |
| Power Consumption: | approx. 240mW ( at 24VDC ) |
| Environment Temperature KNX-Module: | Storage: -20 .. +50°C Operating: 0 .. +50°C |
| Environment Humidity KNX-Module: | 5 .. 95% r.H Non Condensing |
| Bus Coupler: | Integrated |
| Auxiliary Supply: | Not Required |
| Startup with the ETS Version 4 or higher: | HLK305 |
| Curcuit Points: | KNX 2-Pole Clamps ( red / black ) |
| Protection Class: | IP20 |
| Housing KNX-Module: | Plastic |
| Dimensions Housing KNX-Module: | 55mm Standard Frame Size |
| Article Number: | 30513351 White 30513352 Anthracite |
