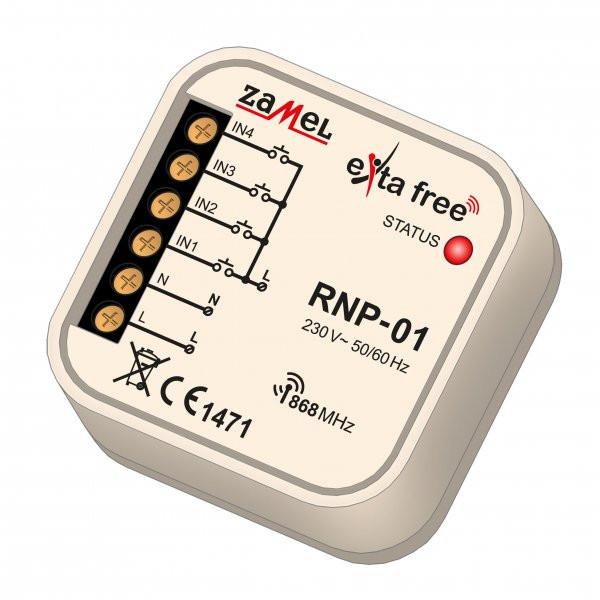

RNP-01 - 4-Channel Radio Transmitter
Hover over image to zoom
ZaMeL
Product Description
Radio transmitter RNP-01 realises remote control function of devices. It is mounted in a junction box and under the existing switch (monostable pushbuttons).
This solution is very useful and results in easy installation of EXTA FREE system without interference in existing wiring system. There is a possibility of using electroinstallation equipment of any manufacturer (no design limit).
Features
- wide range of operation (up to 200 m)
- possibility of increasing operation range by means of RTN-01 retransmitter
- remote control of EXTA FREE system receivers
- radio transmitter mounted in Ø 60 mm junction box
- possibility of connection to a traditional household switch
- low power consumption adapted to constant operation
- possibility of independent control of four receivers
- possibility of simultaneous switching on/switching off any number of EXTA FREE system receivers
Technical details
| Rated supply voltage | 230V AC |
| Number of commands | 4 |
| Degree of protection (IP) | IP20 |
| Fixing | flush-mounted |
| Transmission method | one-way |
| Maximum range in open area | 200 m. |
| Dimensions | 47,5 x 47,5 x 20 mm |
