Profile Type OGRA - 1 m.
Hover over image to zoom
Product Description
OGRA is a surface profile for the assembly of complex line lighting systems with the possibility to use up to 6 of LED strips. Designed to be used in commercial facilities and public utility premises.
Suitable for LED Strips 6 x 12 mm
Options
COVERS | |||||

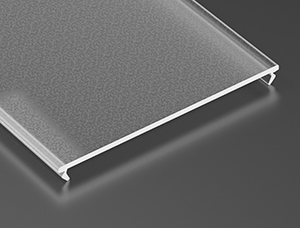

| SUPERWIDE: |
Transparent |
Milky |
Frozen |
Frosted |
Milky Frosted |
END CAPS | |||||
| OGRA: |
Aluminium End Caps White |
Aluminium End Caps Silver | |||
MOUNTING* | |||||
| MOUNTING PROFILES: |
OGRA M1 |
OGRA M2 |
OGRA M3 |
OGRA M4 | |
| CONNECTORS: |
|
|
|
| |
*Mounting accessories are sold separately.
Installation
|
Installation instructions for profile OGRA with a SUPER WIDE cover using mounting screws |
End result of an assembly of profile OGRA with a SUPER WIDE cover using mounting screws |
|
Assembly of profile OGRA system with SUPER WIDE cover using mounting profile OGRA M1 |
End result of assembly of profile OGRA system with SUPER WIDE cover using mounting profile OGRA M1 |
|

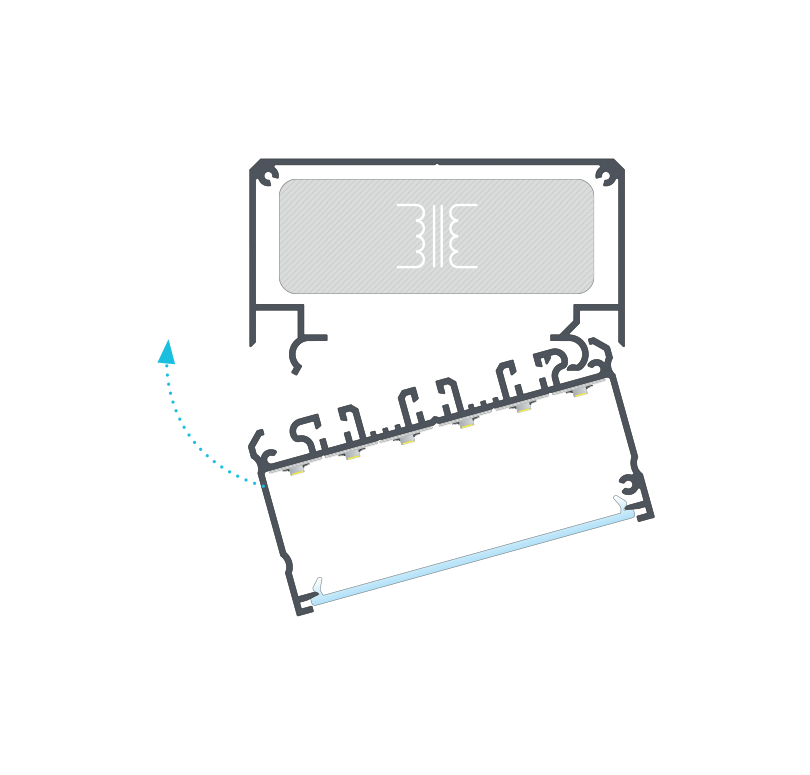

Assembly of OGRA profile with SUPER WIDE cover using mounting profile OGRA M2 for hiding the power supply inside |
End result of assembly of OGRA profile with SUPER WIDE cover using mounting profile OGRA M2 for hiding the power supply inside |
|
Assembly of OGRA profile system using profile connectors and mounting profile OGRA M1 |
Assembly scheme for elements of the lighting system using profile OGRA, (1) SUPER WIDE cover, (2) LED strips, (3) end cap AILA + M1 with hole, (3a), end cap AILA + M1 without hole, (4) cable gland, (5a) right OGRA connector, (5b) left OGRA connector, (5c) connector OGRA M1, (6) OGRA M1 mounting profile |
|
Assembly of OGRA profile system using profile | |
|
Assemble scheme for elements of the lighting system in ceiling using profile OGRA, (1) SUPER WIDE cover, (2) LED strips, (3) end cap OGRA with hole, (3a), end cap OGRA without hole, (4) inter- profile connector OGRA, (5) assembly profile ROSET, (6) mounting profile OGRA M4, (7) end cap OGRA M4 with basic finish, (7a) end cap OGRA M4 with full finish | |
