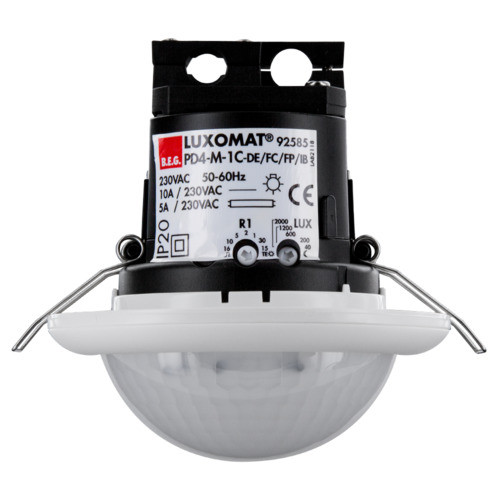

PD4-M-1C - Master/1 channel
Hover over image to zoom
B.E.G.
Product Description
- Occupancy detector with extended detection area
- One potential-free (dry) contact
- Version as master device
- Extension of the detection area with slave devices possible
- Manual switching via push-button possible
- Additional functions can be set up using the optional remote control.
- Factory settings 10 min and 500 lux
Typical applications: monitoring of large areas like underground garages, gyms, warehouses, loading ramps, halls
Technical Details
| Voltage: | 110 - 240 V AC 50 / 60 Hz |
| Dimensions: | FM= Ø 104 x 70 mm SM= Ø 98 x 63 mm FC= Ø 97 x 103 mm |
| Power consumption: | approx. 0.4 W |
| Detection area: | vertical 360° |
| Range: | max. Ø 24 m across max. Ø 8 m towards max. Ø 6.4 m seated |
| Monitored area (tangential movement): | 450 m² / 2.5 m mounting height |
| Mounting height min./max./recommended: | 2 m / 10 m / 2.5 m |
| Degree / class of protection: | IP20 / Class II |
| Ambient temperature: | -25 °C to +50 °C |
| Housing: | Polycarbonate, UV-resistant |
| Switching power: | |
| 2300 W, cos φ = 1 | |
| 1150 VA, cos φ = 0.5 | |
| 300 W LED | |
| max. inrush current Ip (20 ms) = 165 A | |
| max. inrush current Ip (200 µs) = 800 A | |
| Type of contact: | 1x µ-contact, NO contact with tungsten pre-make contact |
| Follow-up time: | 15 sec - 30 min, Pulse |
| Switch-on threshold: | 10 - 2000 Lux Mixed light measuring |
Downloads
Accessories
- IR-Adapter for Smartphones - black - 92726
- IR-PD-1C - 92520
- IR-PD-1C-E - 92077
- IR-PD-Mini - 92159
- Wire basket BSK (Ø 200 x 90 mm) - white - 92199
- RC-Arc extinction kit - white - 10880
- Mini-RC-Arc extinction kit - black - 10882
- SM socket IP54 PD2/PD4-SM - white - 92161
- Surface mounting socket (IP65) PD4-SM IP20 - white - 92375
- Square design frame PD4 FC - pure white matt, similar to RAL 9010 - 92992
