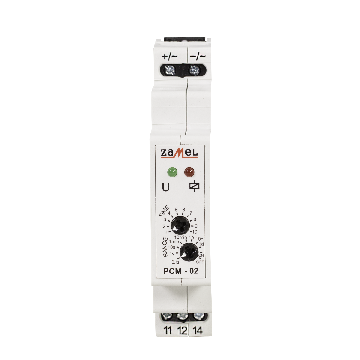

PCM-02/24V - Time Relay Switch OFF-Delay 24V AC/DC
Hover over image to zoom
ZaMeL
Product Description
The one mode time relay PCM-02/24V has a delayed switch off function (aversive) in automation and control systems.
The relay is released by power supply voltage. It has a wide time adjustment range from 0,1 s to 10 days. Additional ON/OFF functions enable constant switch on, switch off of the output (load).
The system has the indicators of power supply voltage, relay mode, and time measure with the help of red LED diode.
Features
- TH 35 DIN rail installation
- Operating mode: switch off delay (input voltage release)
- Constant switch on, switch off function
- Time measure accuracy
- Relay output - 1 change-over contact (NO/NC) contact max 16 A capacity
- Power/relay supply indicator and time measure - LED red
- TH-35 DIN rail installation
- Wide time adjustment range
- Supply voltage control indicator - LED green
Technical details
| Mounting method | DIN Rail Mounted |
| Power supply terminals | -/AC , +/AC |
| Rated supply voltage | 24 V |
| Number of operating modes | 1 (switch off delay) |
| Time setting range t | 0,1 s÷10 days |
| Set time | 2x potentiometer (rotary + step) |
| Rated temperature | - 20/45 °C |
| Rated frequency | 50/60 Hz |
| Parameters of relay contacts | 1NO/NC -16 A / 250V AC1 4000VA |
| Protection degree | IP20 |
| Dimensions | 90 x 17.5 x 66 mm |
