PBM-07 - Bistable Relay 230V AC
Hover over image to zoom
ZaMeL
Product Description

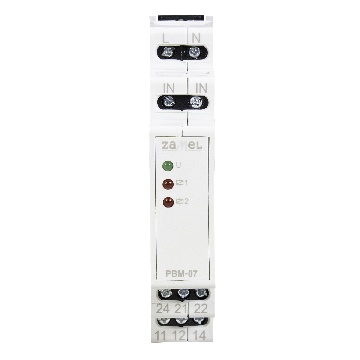

The PBM-07 bistable relay is used to control lighting or any other device by means of unipolar push buttons connected in a parallel way.
The relay is equipped with two outputs activated by means of impulses given to the (IN) input.
It allows to control two circuits / branches simultaneously. The control impulse must be the L line signal.
The trigger input structure enables cooperation with backlit push buttons (including LED backlight).
The total current of backlight for the (IN) input can not exceed 1,5 mA.
The device is designed to be mounted in distribution boards (TH35 rail). LEDs on the front panel indicate power supply (green LED) and the output status (2 x red LED).
Features
- Control of lighting and other devices according to a defined sequence
- System release only from the L line
- Two independent relay outputs (dry contacts) 2 NO /NC contacts with a maximum load of 16 A
- Output status indicated by red LEDs (2 x red LED)
- Possibility of cooperation with unipolar backlit push buttons
- Mounting in distribution boards (TH35 rail)
- Power supply indication (1 x green LED)
- Two-wire control installation
Technical details
| Mounting method | DIN Rail Mounted |
| Rated supply voltage | 230 V |
| Power supply terminals | L , N |
| Number of channels | 2 |
| Rated temperature | - 20/45 °C |
| Rated frequency | 50/60 Hz |
| Parameters of relay contacts | 16 A NO/NC 4000 VA AC1 |
| Protection degree | IP20 |
| Protection degree | II |
| Overvoltage category | II |
| Dimensions | 90 x 17.5 x 66 mm |
