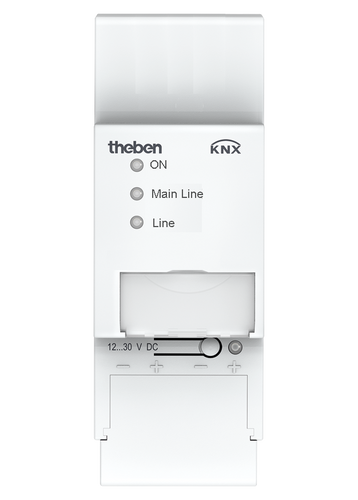

Line coupler S KNX
Hover over image to zoom
Theben
£394.20 (inc VAT) £328.50 (exc VAT)
SKU:
9070880
Weight:
0.20 KGS
Availability:
5 - 10 days lead time
Product Description
Function description:
- Line coupler
- For the connection of KNX lines or areas
- Galvanic separation of the lines / areas
- Long frame support (from ETS 5)
- Support of KNX Data Secure communication
- Telegrams can be forwarded, filtered or blocked
- Can also be used as a line amplifier (repeater)
Technical Details
| Operating voltage KNX | Bus voltage, ≤10 mA |
| Operating voltage | 24 V DC |
| Width | 2 modules |
| Installation type | DIN rail |
| Type of connection | KNX bus terminal |
| Ambient temperature | -5°C ... 45°C |
| Protection class | III |
| Type of protection | IP 20 |
