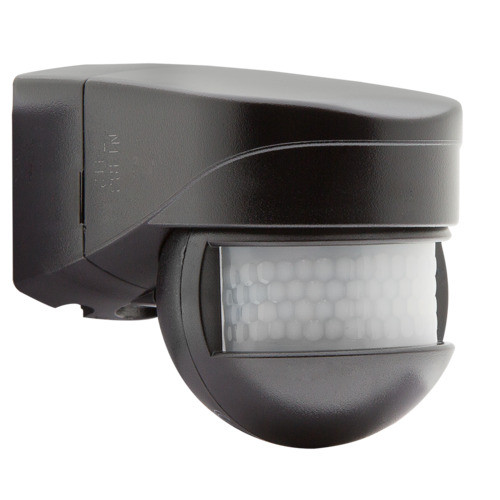

LC-Mini 120°
Hover over image to zoom
B.E.G.
RRP:
£32.70
£30.90 (inc VAT) £27.25 £25.75 (exc VAT)
(You save £1.80)
SKU:
91051
Weight:
0.20 KGS
Availability:
5 - 10 Days Lead Time
Product Description
- Mini motion detector for exterior use with 120° detection area
- Adjustable ball head
- Detection area can be restricted with blinds
Application examples:
monitoring for narrow premises, ways, gateways or at door sills
Technical Details
| Voltage: | 230 V AC ±10% 50 / 60 Hz |
| Dimensions: | 80 x 55 x 70 mm |
| Power consumption: | approx. 0.8 W |
| Detection area: | horizontal 120° |
| Range: | max. 10 m across max. 4 m towards |
| Monitored area (tangential movement): | 105 m² / 2.5 m mounting height |
| Mounting height min./max./recommended: | 2 m / 3 m / 2.5 m |
| Degree / class of protection: | IP44 / Class II |
| Ambient temperature: | -25 °C to +50 °C |
| Housing: | Polycarbonate, UV-resistant |
| Channel 1 (lighting control) | |
| Switching power: | 1000 W, cos φ = 1 |
| 500 VA, cos φ = 0.5 | |
| 300 W LED | |
| Type of contact: | µ-contact, 1 x NO contact |
| Follow-up time: | 4 sec - 10 min |
| Switch-on threshold: | 2 - 2000 Lux |
Downloads
Accessories
- Wire basket BSK (Ø 164 x 143 mm) - 92467
- RC-Arc extinction kit - 10880
- Mini-RC-Arc extinction kit - 10882
