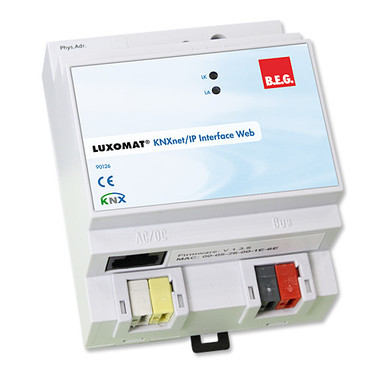

KNXnet/IP Interface + Web Server - 90126
Hover over image to zoom
B.E.G.
£384.49 (inc VAT) £320.41 (exc VAT)
SKU:
90126
Weight:
0.30 KGS
Availability:
5 - 10 Days Lead Time
Product Description
- Websites can be called up from the integrated web server via the TCP/IP network in order to display KNX statuses or to switch events
- Controllable via Smartphone or tablet PC
- Programming interfaces from the ETS to the KNX BUS
- Programmable via ETS3 and 4
- KNXnet/IP-secured tunnel connection
- Plastic housing, 4 widths units (DIN-rail, top hat)
- Connection: 12-30V AC/DC, network and KNX
- Pre-installed visualisation software
- Integrated web server
Technical Details
| Voltage: | 12 - 30 V AC / DC |
| Dimensions: | 86 x 72 x 58 mm |
| Degree / class of protection: | IP20 / Class I |
| Ambient temperature: | 0 °C to +45 °C |
| Housing: | Plastic LEXAN UL-94-V0 |
| Display elements: | |
| LA-LED for indicating communication on the Ethernet connection | |
| LK-LED: for indicating Ethernet connection | |
| LA-LED: for indicating communication on the Ethernet connection | |
| Manual operation: | Learn keys for switching normal/addressing mode |
| Connections and wires: | |
| Bus line: EIB/KNX, RJ-45 (Ethernet) | |
| Power supply: Bus terminal (yellow/white) | |
| Bus line: EIB/KNX bus terminal (black/red) |
