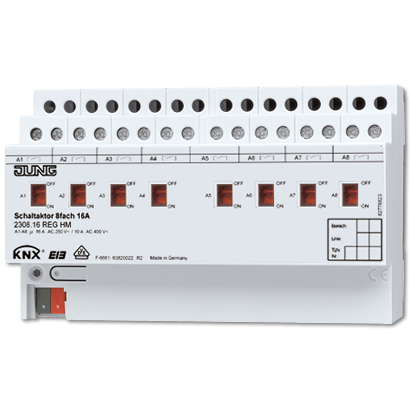

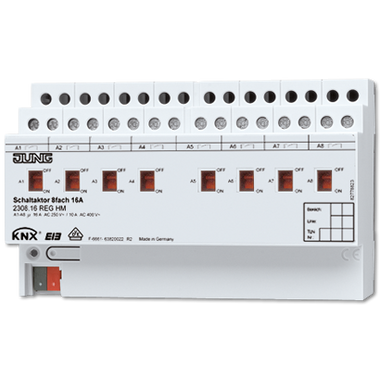

KNX Switch Actuator 8-G - 2308.16 REGHM
Hover over image to zoom
Jung
Product Description
Rail mounting device, 8 rail units
8 NO contacts with manual mechanical operation and status indicator
Only with the ETS 3.0d version or later versions the full functionality will be available.
ETS product family: Output
Product type: Binary output
Intended Use
- Switching of 110 ... 230 V AC or 24 V AC/DC electrical loads with floating contacts
- Mounting on DIN rail according to EN 60715 in distribution boxes
Characteristics
- Manual switching of the relays is independent of the bus
- Operation as NO or NC contacts
- Logic operation and forcing function
- Switching feedback (bus operation only)
- Switch position display
- Central switching function with collective feedback
- Disabling function for each channel
- Time functions: switch-on delay, switch-off delay, staircase lighting timer with pre-warning function
- Integration into light scenes
- Operating hours counter, configurable via bus
- Input monitoring for cyclical updating with safety circuit
- No additional power supply necessary
Technical Details
| Rated voltage KNX: | DC 21 ... 32 V SELV |
| Connection, KNX: | terminal |
| Power consumption KNX: | typical 150 mW |
| Power loss: | max. 8 W |
| Ambient temperature: | -5 ... +45 °C |
| Storage/transport temperature: | -25 ... +70 °C |
| Mounting width: | 144 mm (8 rail units) |
| Connection, outputs | |
| Connection mode: | screw terminals |
| single wire: | 0.5 ... 4 mm² |
| stranded without ferrule: | 0.5 ... 4 mm² |
| stranded with ferrule: | 0.5 ... 2.5 mm² |
| Switching outputs | |
| Contact type: | floating relay contacts (μ contact) |
| Switching voltage AC: | AC 250 / 400 V |
| Switching current 230 V AC1: | 16 A |
| Switching current 230 V AC3: | 10 A |
| Switching current 400 V AC1: | 10 A |
| Switching current 400 V AC3: | 6 A |
| Fluorescent lamps: | 10 AX |
| Ohmic load: | 3680 W |
| Capacitive load: | 10 A / 140 µF |
| Switching voltage DC: | DC 12 ... 24 V |
| Switching current DC: | 16 A |
| Min. switching current: | 100 mA |
| Switch-on current 150 µs: | 400 A |
| Switch-on current 600 µs: | 200 A |
| Lamp loads | |
| Incandescent lamps: | 2500 W |
| HV halogen lamps: | 2500 W |
| LV halogen lamps with | |
| inductive transformers: | 1200 VA |
| electronic transformers: | 1500 W |
| Fluorescent lamps T5/T8 | |
| non-compensated: | 2500 W |
| parallel compensated: | 1300 W / 140 µF |
| lead-lag circuit: | 2300 W / 140 µF |
| Compact fluorescent lamps | |
| non-compensated: | 2500 W |
| parallel compensated: | 1300 W / 140 µF |
| Mercury vapour lamps | |
| non-compensated: | 2000 W |
| parallel compensated: | 2000 W / 140 µF |
| Approvals: | VDE |
