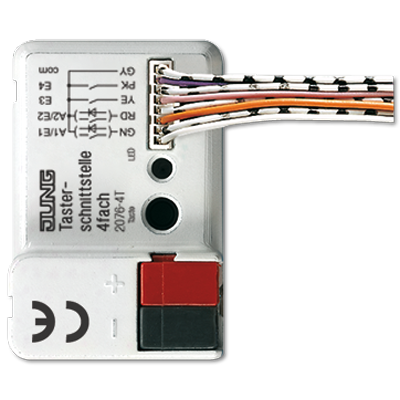

KNX Push-Button Interface, 4-Gang

Hover over image to zoom

  • Image 1
Jung
£112.26 (inc VAT) £93.55 (exc VAT)
SKU:
2076-4T
Weight:
0.10 KGS
Availability:
5 - 10 days lead time

 Product Description

ETS product family: Input
Product type: Binary input

Can be used as binary input
Can be used as switching output, e.g. for LEDs, max. 0.8 mA

Technical Details

Inputs
Number: 4
Signal voltage: 5 V
Signal current: > 1 mA
Connection: branching terminal, 5 pins
Length of input cable: 25 cm prefabricated, extendable to 5 m max
Outputs
Output voltage: 5 V with 3.9 kΩ series resistor (open-circuit voltage)
Output current: 2 mA for red low-current LED (at approx. 1.4 V)
Dimensions (W x H x D): 28 x 43 x 16 mm



Downloads

Operating Instruction
Manual
ETS File
