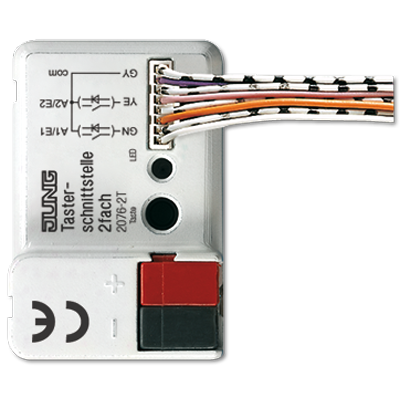

KNX Push-Button Interface, 2-Gang
Hover over image to zoom
Jung
£62.90 (inc VAT) £52.42 (exc VAT)
SKU:
2076-2T
Weight:
0.10 KGS
Availability:
5 - 10 days lead time
Product Description
ETS product family: Input
Product type: Binary input
Can be used as binary input
Can be used as switching output, e.g. for LEDs, max. 0.8 mA
Technical Details
| Inputs | |
| Number: | 2 |
| Signal voltage: | 5 V |
| Signal current: | > 1 mA |
| Connection: | branching terminal, 5 pins |
| Length of input cable: | 25 cm prefabricated, extendable to 5 m max |
| Outputs | |
| Output voltage: | 5 V with 3.9 kΩ series resistor (open-circuit voltage) |
| Output current: | 2 mA for red low-current LED (at approx. 1.4 V) |
| Dimensions (W x H x D): | 28 x 43 x 16 mm |
