KNX-IMPZ-WZ-M In Home Water Meters
Hover over image to zoom
Arcus
£230.08 (inc VAT) £191.73 (exc VAT)
Weight:
0.70 KGS
Availability:
Usually ships in 5 - 10 working days
Product Description

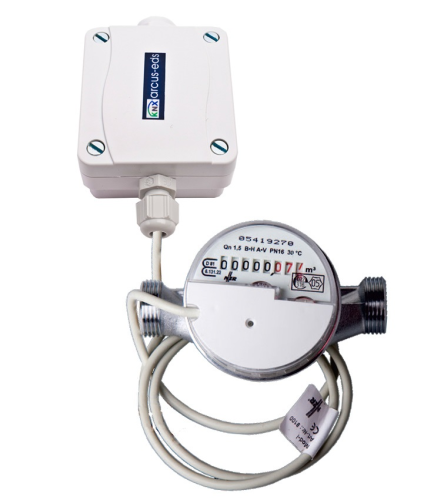

The Counter-Modul KNX-IMPZ-WZ-M is used for remote reading and remote monitoring of metering data.
The device has an integrated bus coupling unit and needs no auxiliary power.
The Counter-Modul KNX-IMPZ-WZ-M is delivered in a housing of an impact resistant glass pallet reinforced plastic with gasket and achieves the protection class IP65.
Technical Details KNX-IMPZ
| Operating Voltage: | EIB/KNX bus voltage 21 .. 32 VDC |
| Power Consumption: | ca. 240 mW ( at 24VDC ) |
| Auxiliary Supply: | Not required |
| Bus Coupler: | Integrated |
| Ambient Temperature Electronic Measuring Equipment Casing: | Operation: -20 .. +55 °C Storage: -20 .. +85 °C |
| Start-up with ETS: | ARC_IMPZ.VD2 |
| Curcuit Points: | EIB-2-pole clamps ( red / black ) |
| Protection Class: | IP65 |
| Assembly Type: | Assembly with 2 screws finery |
| Casing Type: | Plastic housing grey |
| Casing Dimensions: | 115 x 65 x 50 mm ( W x H x D ) |
Technical Details WZ-M
| Nominal Flow Rate: Nominal Diameter: Maximum Flow Rate: Installation Length: | 1,5 m3/h 15 mm 3 m3/h 80 mm | WZK-M cold 30°C WZW-M hot 90°C | 60201-75124015 60201-75124515 |
| Nominal Flow Rate: Nominal Diameter: Maximum Flow Rate: Installation Length: | 1,5 m3/h 15 mm 3 m3/h 110 mm | WZK-M cold 30°C WZW-M hot 90°C | 60201-75124115 60201-75124615 |
| Nominal Flow Rate: Nominal Diameter: Maximum Flow Rate: Installation Length: | 2,5 m3/h 20 mm 5 m3/h 130 mm | WZK-M cold 30°C WZW-M hot 90°C | 60201-75124025 60201-75124525 |
Downloads
Application Description
Datasheet Watermeter
ETS ARC IMPZ (from serial number 1622020 (SK01) and 1631000 (REG))
ETS IMPZ DUO (up to serial number 1622019 (SK01) and 1630999 (REG))
ETS IMPZx (up to serial number 1622019 (SK01) and 1630999 (REG))
