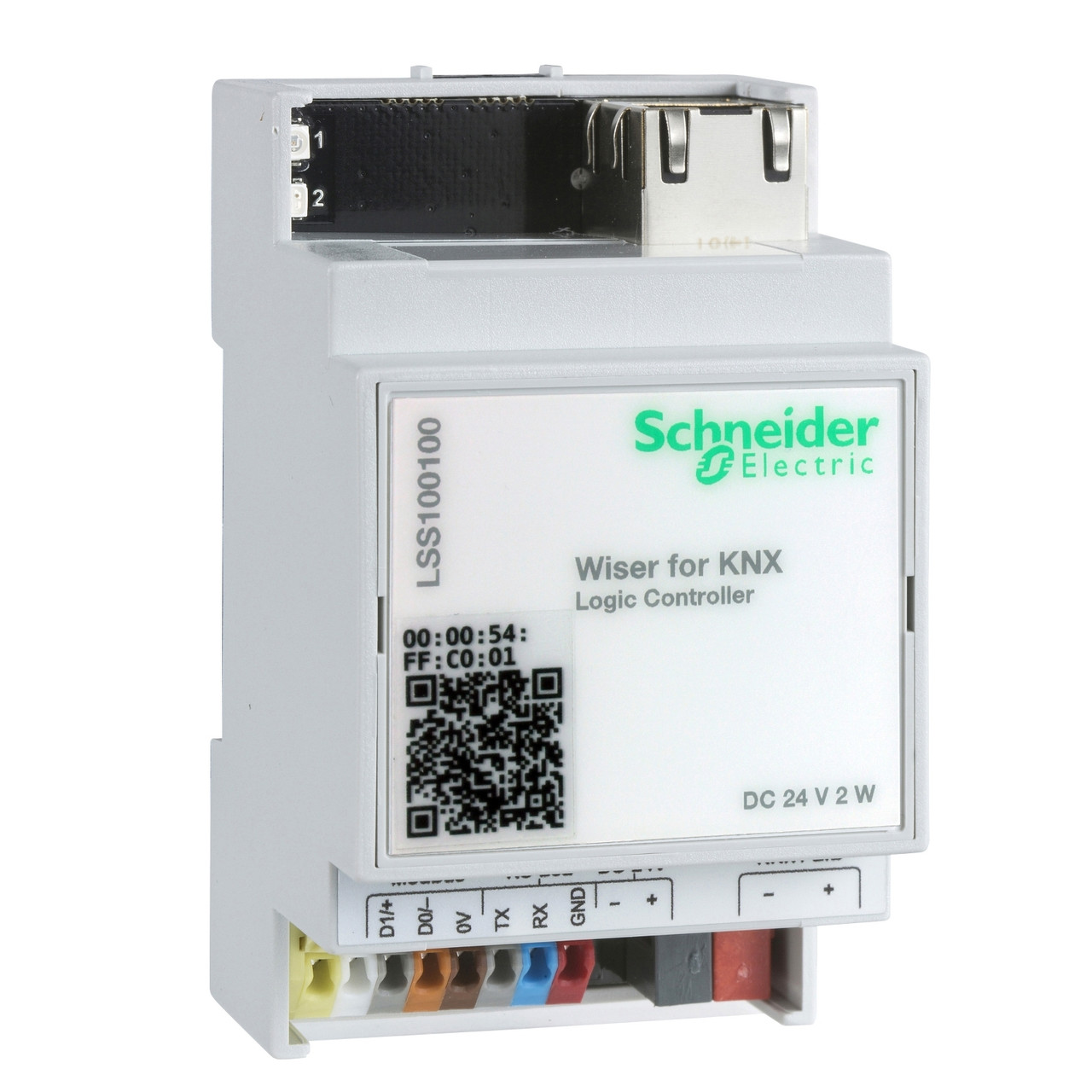

KNX homeLYnk logic controller-Wiser for KNX Logic Controller - LSS100100
Hover over image to zoom
Product Description
Wiser for KNX is the easiest way to visualise and control a complete Home Automation Solution in a KNX and Modbus networks.
Unit Weight:0.126 KGM
Bar Code:3606480595998
Customs Code:8517620000
Wiser for KNX (formerly know as homeLYnk) can be used in several ways:
- As an user interface to display and control relevant informations on mobile devices
- As a gateway to translate and enable communication between different products
- As an aggregator to stock, analyze, and send the data (.csv file for example)
- As an event controler that sends email in case of issues
Applications
- Logical functions
- WEB SCADA visualization for PC and touch-devices
- Cross-standard gateway between KNX and Modbus RTU/TCP
- BACnet Server (150 points)
- Integration with third party devices over RS-232 (IR, AV)
- Scheduling
- Camera streaming
- Data logger with trends
- Pre-made Modbus templates
- Easy bloc programming
- Up to 8 users with different login and password
- BACnet certified “BACnet Application Specific Controller (B-ASC)”
- New icons
Technical Details
| Supply voltage | 24 V DC |
| Power consumption | 2 W |
| LED indicator 1 | Green LED (CPU load) |
| LED indicator 2 | Green LED (Operation) or Red LED (Reset) |
| Interface | 1x KNX, 1x10BaseT/100BaseTX, 1x RS-485 (incl. Polarization resistors 47 kΩ, no termination),1x RS-232, 1x USB2.0, 1x Reset push button |
| Terminal | |
| KNX bus | Bus connecting terminal 2 x 0.8 mm |
| Power supply | Clamp, 0.5 mm²–1.5 mm² |
| Serial | Clamp, 0.5 mm²–1.5 mm² |
| Operation | -5°C to +45°C |
| Environment | Can be used at elevations up to 2000 m above sea level (MSL) |
| Max. humidity | 93 %, no condensation |
| Dimension | 90 x 52 x 58 mm (HxWxD) |
| Device width | 3 modules = approx. 54 mm |
Downloads
Warranty Information
3 YEARS
