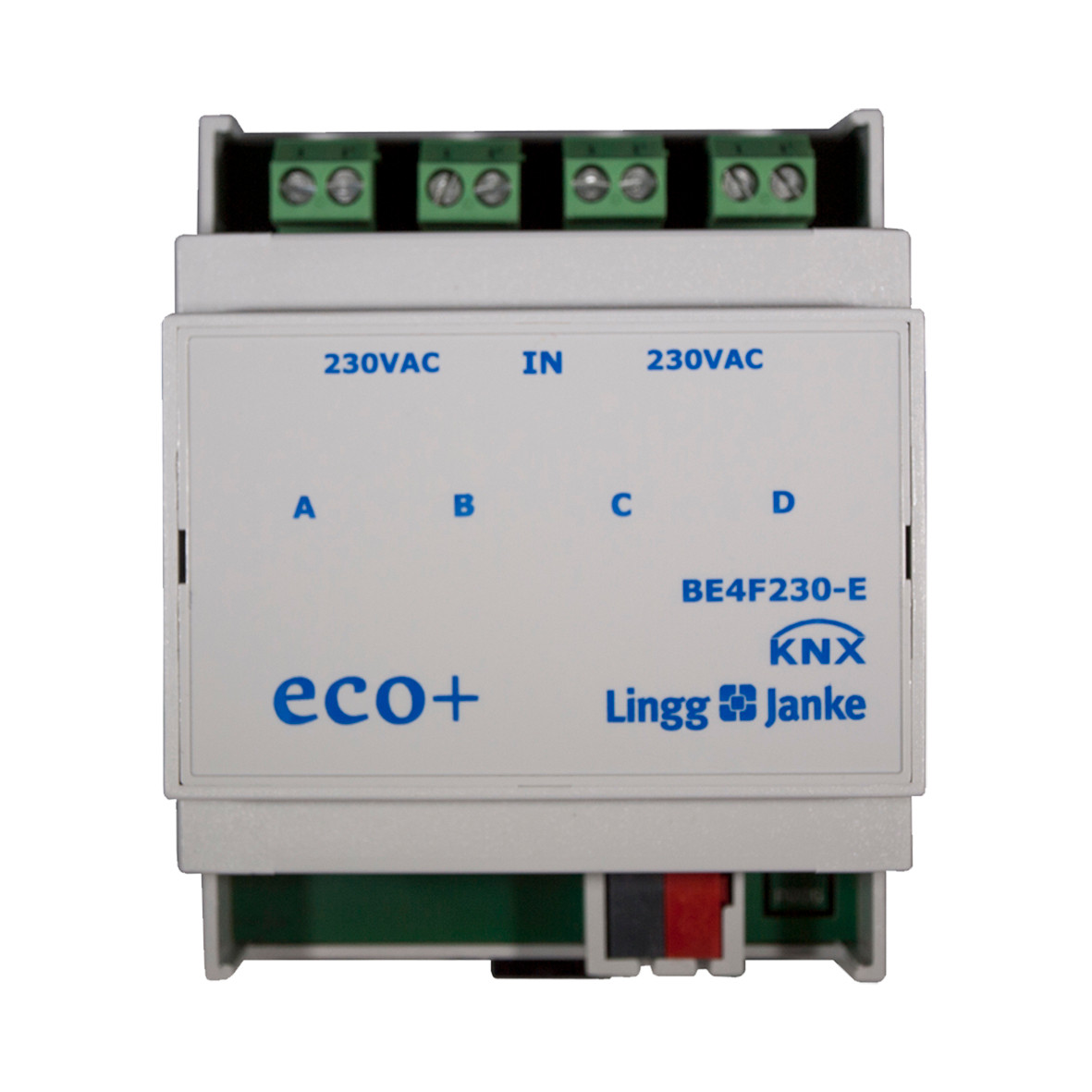

KNX eco+ Binary Inputs 4-Fold, signal voltage 230V - BE4F230-E
Hover over image to zoom
Lingg & Janke
¥31,513.05 (inc VAT) ¥26,260.53 (exc VAT)
SKU:
79532
Weight:
0.25 KGS
Availability:
Usually ships in 5 - 10 working days
Product Description
The ECO series binary inputs can generate bus telegrams on 4 independent channels. The sensing voltage required is supplied by the devices from bus voltage( BE4FK-Q) or is 230V (BE4F230-E).
Each channel is connected to a screw terminal.
- inputs for dry contacts
- max. cable length 100m
- switching, dimming, blind / shutter control, values, counters
Technical Details
| Max. Group Addresses: | 34 |
| Input Voltage: | 180...250V AC/DC |
| Auxillary Power Supply: | Not Necessary |
| Protection Class: | IP 20 |
| Dimensions: | 71 x 90 x 60 (4 M) |
| Installation: | 35mm DIN rail |
| Operating Temperature: | -5 ... +45°C |
