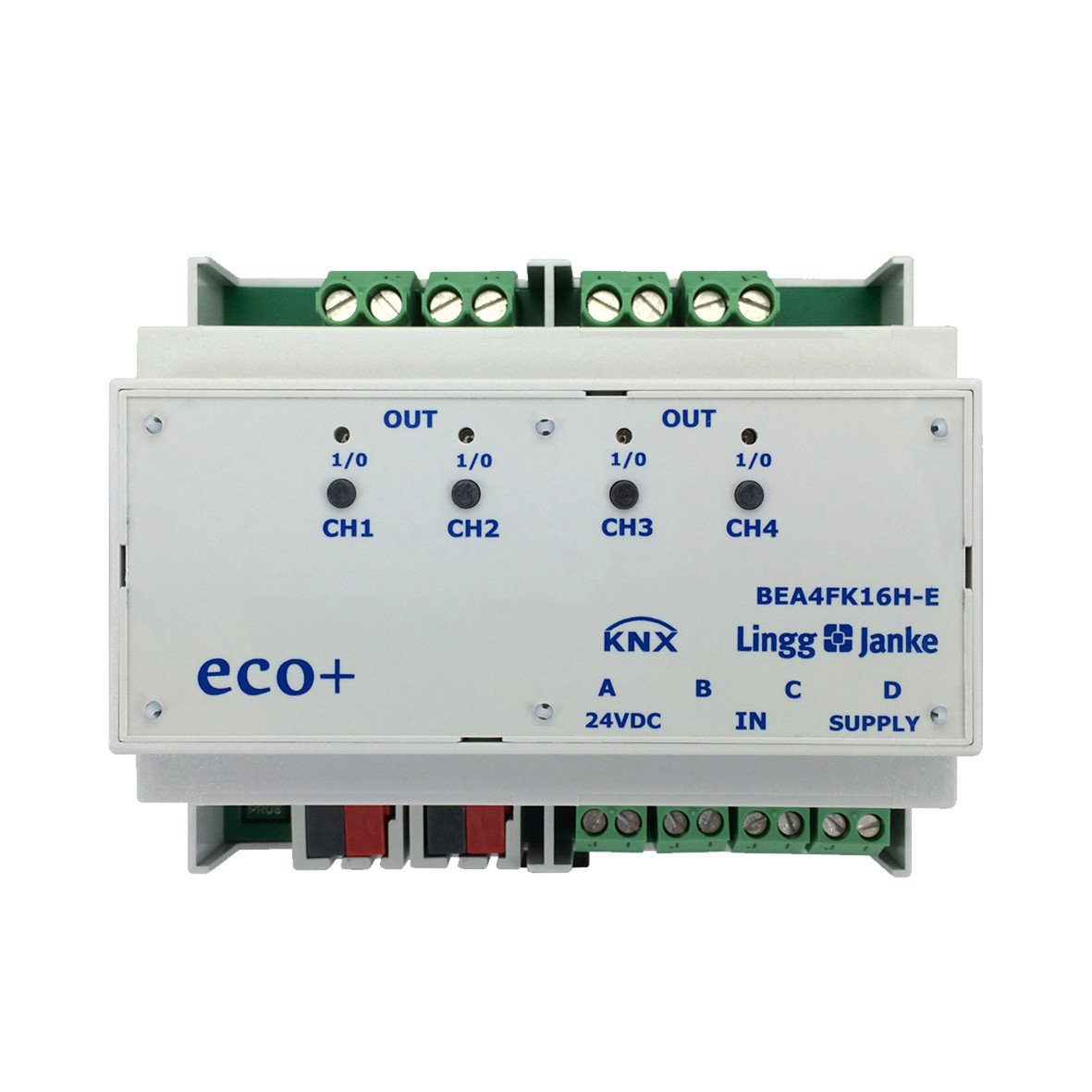

KNX eco+ Binary Input / Binary Output 4-Fold, for dry contacts - BEA4FK16H-E
Hover over image to zoom
Lingg & Janke
Product Description
The ECO-series switching actuators with binary inputs are especially suited for high loads, also capacitive loads, with high start-up peak (C load). The load for each channel is 16A at 250V AC, each channel can be assigned its own mains phase. Each channel is connected to a screw terminal.
Additionally are binary inputs with potential free or 230V signal present. Each channel also has a button for manual operating and switching status LED.
- inputs for dry contacts
- max. cable length 100m
- manual operation for each output channel
- input functions: switching (standard, press/release, short/long), dimming, blind / shutter, scene, inhibit
- output functions: time functions, logical functions, status, scenes (8)
- switching capacity per channel: 16A 250VAC, suitable for C load up to 200μF
Technical Details
| Max. Group Addresses: | 80 |
| Power Supply: | 24V DC via KNX |
| Auxillary Power Supply: | Not Necessary |
| Protection Class: | IP 20 |
| Dimensions: | 108 x 90 x 60 (6 M) |
| Installation: | 35mm DIN rail |
| Mechanical Life-cycle: | 106 Switching Operations |
| Operating Temperature: | -5 ... +45°C |
| Rated Load per Contact: | 16A / 250V 50..60Hz |
| Maximum Power per Contact: | Incandescent lamp load 3680W |
| Fluorescent lamp load: | |
| - compensated 3680 W | |
| - uncomp. ( C max 200uF ) 2500 W | |
| Low volt. halogen with transf. 2000W | |
| Inputs: | Potential free |
