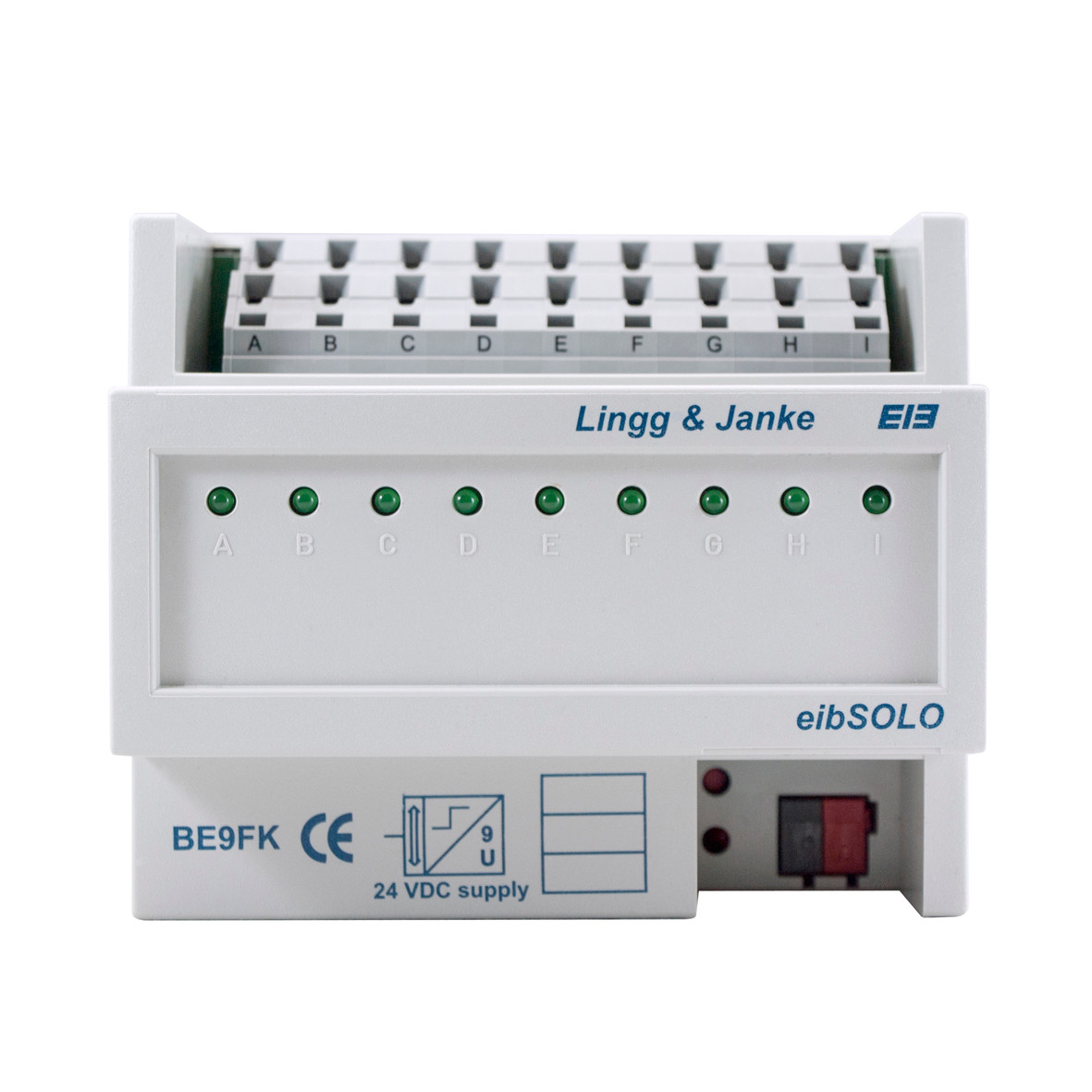

KNX Binary Input 9-Fold, For Dry Contacts - Be9Fk
Hover over image to zoom
Lingg & Janke
Product Description
The eibSOLO binary input BE9FK can generate bus telegrams on 9 independent channels. The sensing voltage required is supplied by the devices from bus voltage. This allows onventional, potential-free pushbuttons or switches to be directly connected.
Each channel is connected to a screwless terminal. For each channel, an LED indicates the state of the signal.
Comprehensive application software allows each channel to be parameterized individually. A counting feature complements the switching, dimming, shutter control and value feature of the binary input. The switching feature can generate two separate telegrams.
- Inputs for dry contacts
- Max. cable length 100m
- Switching, dimming, blind / shutter control, values, counters
Technical Details
| Max. Group Addresses: | 34 |
| type of contact: | potential-free, maximum cable lenght 100m |
| Protection Class: | IP 20 |
| Dimensions: | 108 x 90 x 65 mm (6 M) |
| Installation: | 35mm DIN rail |
| Operating Temperature: | -5 ... +45°C |
| Display Elements: | One LED for each channel |
