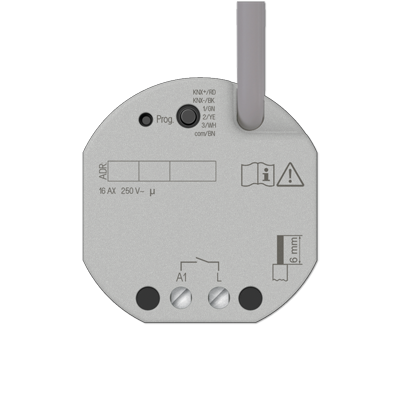

JUNG - KNX switch actuator, 1-gang
Hover over image to zoom
Jung
RRP:
£183.37
£165.04 (inc VAT) £152.81 £137.53 (exc VAT)
(You save £18.33)
SKU:
230011SU
Weight:
0.20 KGS
Availability:
TBC - CALL FOR INFO
Product Description
Intended use
- Switching of electrical loads via relay contact
- Reading in switching states of installation switches or push-buttons and other floating contacts at inputs 1...3
- Signal evaluation of condensation (ref.-no.: BTS 01) and leakage sensors (ref.-no.: LES 01) at inputs 1...3
- Acquisition of temperature values via NTC temperature sensor at input 3 (ref.-no.: FF NTC)
- Installation in flush box with dimensions according to DIN 49073
Product characteristics
- Output can be operated via KNX telegrams or extension inputs
- Three extension inputs for connecting floating contacts or dew/leakage sensors. NTC temperature sensor can be connected to input 3.
- Supply via bus, no additional power supply necessary
- KNX Data Secure compatible with ETS 5.7.3 or higher
- Can be updated with the ETS Service App
Characteristics switching operation
- Operation as 1-way NO or 1-way NC contacts
- Feedback function
- Logic operation and forced guidance
- Central switching function
- Time functions: switch-on delay, switch-off delay, staircase lighting timer with switch-off warning
- Scene function
- Operating hours counter
Characteristics satellite input
- Operating functions switching, dimming (including colour temperature), controlling blinds, value transmitter (1 byte, 2 byte, 3 byte and 6 byte incl. RGBW und colour temperature presets), scene extension etc.
- Disabling function
- Debounce time adjustable
Logic function characteristics
- Logic gates
- Transformer (conversion)
- Disabling element
- Comparator
- Limit value switch
Technical Details
| Ambient temperature: | −5 ... +45 °C |
| Storage/transport temperature: | −25 ... +70 °C |
| Dimensions (W x H x D): | 48 x 50 x 28 mm |
| KNX medium: | TP 256 |
| Commissioning mode: | S-mode |
| Rated voltage KNX: | DC 21 ... 32 V SELV |
| Current consumption KNX: | 5 ... 18 mA |
| Connection, KNX: | connection terminal to control cable |
| Outputs | |
| Connection mode: | screw terminals |
| Switching voltage: | AC 250 V ~ |
| Switching current: | 16 A |
| Fluorescent lamps: | 16 AX |
| Switch-on current 200 µs: | max. 800 A |
| Switch-on current 20 ms: | max. 165 A |
| Connected load | |
| Ohmic load: | 2500 W |
| Capacitive load: | max. 16 A (140 µF) |
| Motors: | 1380 VA |
| Incandescent lamps: | 2300 W |
| HV halogen lamps: | 2300 W |
| HV LED lamps: | max. 400 W |
| LV halogen lamps with | |
| electronic transformers: | 1500 W |
| inductive transformers: | 1200 VA |
| Compact fluorescent lamps | |
| non-compensated: | 1000 W |
| parallel compensated: | 1160 W / 140 µF |
| Reduction of connected load | |
| for every 5 °C exceededing 25 °C: | −10 % |
| for installation into wooden or hollow walls: | −15 % |
| for installation into multiple combinations: | −20 % |
| Connection | |
| Connection mode: | screw terminals |
| single wire: | 1 x 0.5 ... 4 mm² |
| stranded without ferrule: | 1 x 0.5 ... 4 mm² |
| stranded with ferrule: | 1 x 0.5 ... 2.5 mm² |
| Inputs | |
| Control cable: | YY6x0.6 (preterminated) |
| Input type: | floating |
| Number: | 3 |
| Total length of extension unit cable: | max. 10 m |
| Cable type: | J-Y(St)Y |
| Voltage satellite inputs: | approx. 5 V |
