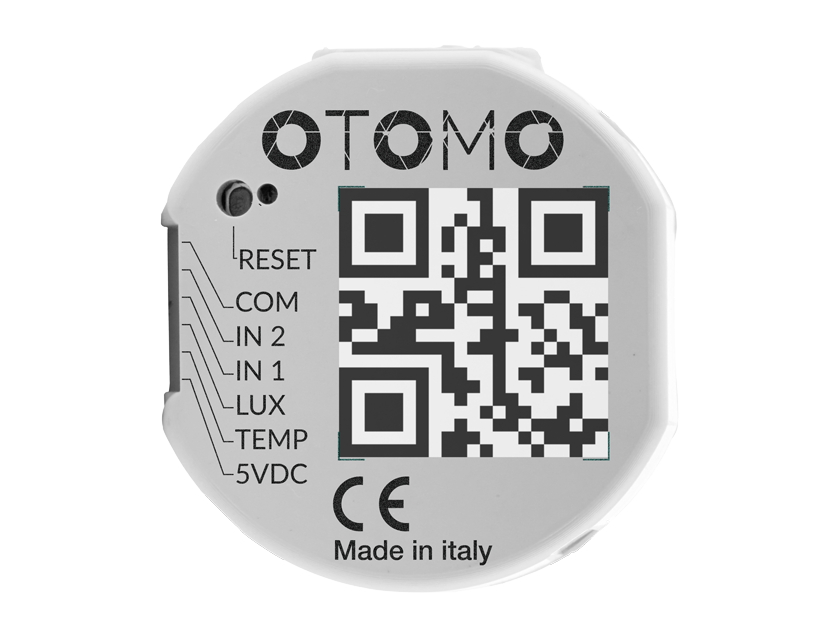

IO41 Module (4 In + 1 Out) - IO41A01BLE
Hover over image to zoom
OTOMO
£156.59 (inc VAT) £130.49 (exc VAT)
SKU:
IO41A01BLE
Weight:
0.10 KGS
Availability:
5 - 10 Days Lead Time
Product Description
The IO41A01BLE module is OTOMO systems component. The device is equipped with 4 inputs, 2 digitals and 2 analogs, and 1 output relays 10A. The 2 analog inputs are used to connect OTOMO brightness and temperature sensor. The digital inputs for dry contacts are dedicated to interfacing conventional push buttons and can be configured as: 1 channel for ON-OFF lights (not dimming lights) or as 2 coupled channels (UP, DOWN, STOP shutter command) to drive a shutter.
This product is intended for recessed installation.
The device is configured by OTOMO APP available for iOS and Android.
Technical Details
| Supply Voltage: | 230V AC 50/60Hz |
| Relay Output | |
| Outputs: | 1 x 10 A cos ? 1 - 230 V AC |
| Max capacitive load @ 230V AC: | 21?F - 5,000 cycles |
| Max load incandescent lamps: | 1500W - 50,000 cycles |
| Max load fluorescent lamps: | 6 x18W - 25,000 cycles |
| Max load halogen lamps: | 500W - 50,000 cycles |
| Inputs: | 2 x Digital 2 x Analog |
| Mechanical Data | |
| Enclosure: | plastic material (nylon) |
| Dimensions: | (R x H.): 52 x 28 mm |
| Weight: | 52 g |
| Installation: | recessed box |
