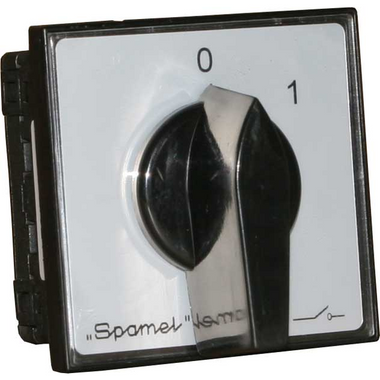

Front Panel Mounted Rotary CAM Switch 0-1 / 32A / IP65
Hover over image to zoom
£31.08 (inc VAT) £25.90 (exc VAT)
SKU:
SK32-1.825\P03
Weight:
0.20 KGS
Availability:
In Stock / Next Day Delivery
Current Stock:
10
Product Description
One-Pole (0-1) 32A front mounted rotary CAM switch for control panels.
IP65 rated.
4 screws mounting.
Technical Details
| Rated insulation voltage Ue | 690 V |
| Rated withstand impulse voltage Uimp | 4 kV |
| Rated continuous current Iu=Ith | 40 A |
| Rated operational current Ie for AC-21A, AC-22A | 32 A (230/400/500/690 V) |
| Rated operational power Pe for AC-23A | 7.5 kW (230 V) 13 kW (400 V) 16 kW (500 V) 22 kW (690 V) |
| Rated operational power Pe for AC-3 | 6 kW (230 V) 10 kW (400 V) 12 kW (500 V) 17 kW (690 V) |
| Rated operational current Ie for DC-21A | 32 A (24 V) 16 A (110 V) 12 A (220 V) |
| Short-time short-circuit withstand current Icw(1s) | 0.5 kA |
| Rated short-circuit making current Icm | 0.7 kA |
| Rated conventional short-circuit current | 10 kA |
| Rated current fuse link gG | 35 A |
| Wire gauge | 4...10 mm² |
| Tightening torque, terminals | 1.2 Nm |
| Panel mounting | □48 |
| Mechanical endurance | 3.0 mln (transposition cycles) |
| Ambient temperature | -40 ... +70°C (work) -40 ... +70°C (storage) |
| Vibration test (acc. to IEC 60068-2-6) | 2...13, 2...100 Hz (frequency) ± 1 mm (acceleration amplitude) ±0.7 g (acceleration amplitude) |
| Shock test (acc. to IEC 60068-2-27) | 15 g (peak acceleration) 11 ms (impulse duration) |
| Damp heat cyclic test (acc. to IEC 60068-2-30) | 55°C (ambient temperature) 95% (relative humidity) |
| Salt mist cyclic test (acc. to IEC 60068-2-52) | severity 1 |
