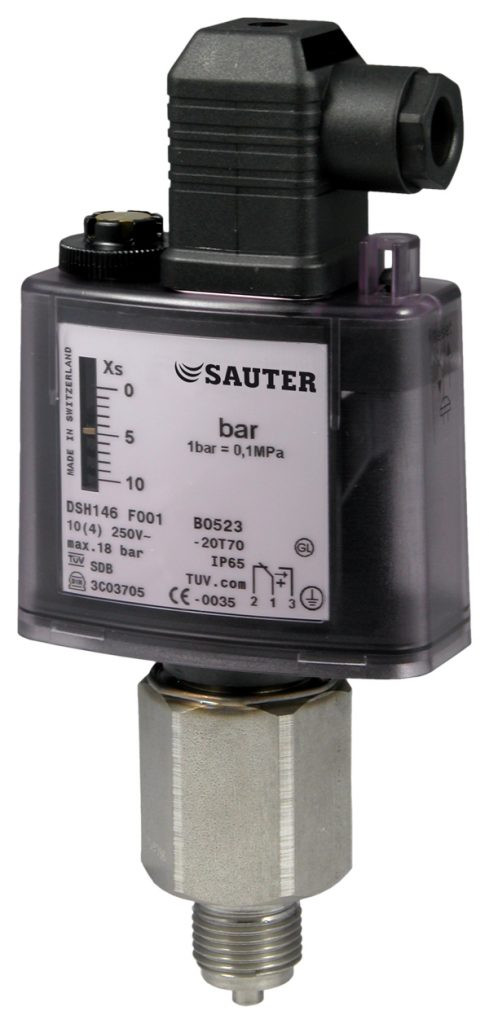

DSL/DSH Specially Designed Pressure Limiter
Hover over image to zoom
SAUTER
£508.99 (inc VAT) £424.16 (exc VAT)
SKU:
DSH143F001 DSH146F001 DSH152F001 DSH158F001 DSL140F001 DSL143F001 DSL152F001
Weight:
0.50 KGS
Availability:
10 days lead time
Product Description
Control and monitoring according to needs and with no auxiliary energy.
Features
- Switching point can be adjusted
- Sealable
- Pressure sensor made of brass for non-aggressive media (DSL)
- Pressure sensor made of stainless steel for aggressive media (DSH)
- Locking type: With falling pressure (DSL) or with rising pressure (DSH)
- SIL 2 certified as per EN 61508
- Approved for marine applications (GL and LR certified)
Technical Details
| Power Supply | |
| Maximum load with gold-plated contacts | 400 mA, 24 V, 10 VA |
| Minimum load with gold-plated contacts | 4 mA, 5 V |
| Maximum load with silver-plated contacts | 10(4) A, 250 V~, 50 W, 250 V= |
| Minimum load with silver-plated contacts | 100 mA, 24 V |
| Parameters | |
| Pressure connection | G½" male |
Overview
| Type | Setting Range | Min. Change For Reset | Maximum Pressure | Admissible Sensor Temperature | Admissible Vacuum Loading | Weight |
| DSL140F001 | 0. 2.5 bar | 0.4 bar | 12 bar | 70 °C | -0.7 bar | 0.5 kg |
| DSL143F001 | 0...6 bar | 0.5 bar | 16 bar | 70 °C | -0.7 bar | 0.5 kg |
| DSL152F001 | 6...16 bar | 1.2 bar | 30 bar | 70 °C | -1.0 bar | 0.4 kg |
| DSH127F001 | -1...5 bar | -0.4 bar | 16 bar | 110 °C | -1.0 bar | 0.5 kg |
| DSH143F001 | 0.5...6 bar | -0.45 bar | 16 bar | 110 °C | -0.7 bar | 0.5 kg |
| DSH146F001 | 1...10 bar | -0.8 bar | 18 bar | 110 °C | -1.0 bar | 0.5 kg |
| DSH152F001 | 2...16 bar | -1.5 bar | 60 bar | 110 °C | -1.0 bar | 0.3 kg |
| DSH158F001 | 5...25 bar | -1.8 bar | 60 bar | 110 °C | -1.0 bar | 0.3 kg |
| DSH170F001 | 15...40 bar | -2.0 bar | 60 bar | 110 °C | -1.0 bar | 0.3 kg |
