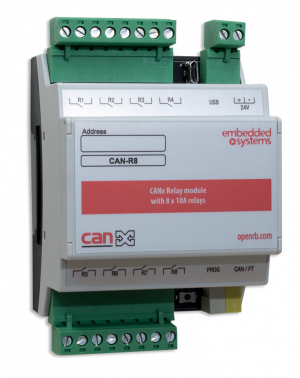

CANx 8 x 10A Relays
Hover over image to zoom
Product Description
8 channel CANx relays device is designed for high power AC/DC circuits commutation. It is applicable for power sockets, blinds/shutters, thermoelectric valve, non-dimmable light, HVAC and locks control. The configuration and monitoring of the device is done through separate LogicMachine CANx application. The device is designed for DIN-rail mounting and requires 4 DIN-units.
Highlights
- 8 x 10A relays
- 8 x manual operating buttons
- 1 x CAN FT
- 4 DIN
- CANx configurator is freely available from LM app store
Technical Details
| Power supply | 12-32V DC |
| Power consumption (at 24V) | 10 mA (relays off), 78 mA (relays on) |
| DC overvoltage protection | 50 V |
| Wrong wiring polarity protection | Yes |
| Interfaces & Operating Elements | |
| Relays | 8 |
| Rated voltage/current | 250V AC (10A), 30V DC (5 A) |
| USB | 1 microUSB for upgrade firmware flashing |
| CAN FT | 1 |
| LED | 1 – CPU load, 1 - Activity, 8 - Relay status |
| Programming/reset button | 1 |
| Clamps & Enclosure | |
| CAN FT Terminal | 0.8mm2 |
| Relays | 5 mm2 |
| Power supply | 5 mm2 |
| Color | Gray |
| Dimensions | 70(W)x91(H)x56(L) mm |
| Protection | IP20 according to EN 60529 |
| Usage temperature | -5C ... +55C |
| Storage temperature | -20C ... +70C |
| Net weight | 104 g |
