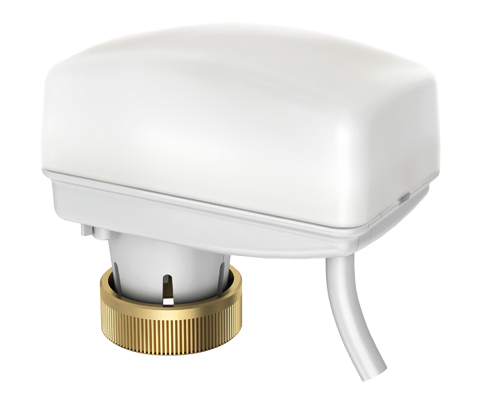

AXM 217 Motorised Actuator for Unit Valves
Hover over image to zoom
Product Description
How energy efficiency is improved
Reliable actuation in efficient control systems
Features
- Reliable actuation in efficient control systems
- For 2-point or 3-point controllers in conjunction with single-room control systems
- Stepping motor with electronic activation and cut-out
- Attached to valve with M30 × 1.5 thread
- Maintenance-free gear unit
- Suitable for retrofitting existing installations using the appropriate adapters
- Operating status indicated by integrated LED
- Fitting position vertically upright to horizontal, not suspended
Technical Details
| Nominal stroke: | 6.3 mm |
| Running time: | 13 s/mm |
| Actuating power: | 120 N |
| Sound pressure level: | <30 dB (A) |
| Max. operating temperature at valv: | 90 °C |
| Admissible ambient temperature: | 0...50 °C |
| Admissible ambient humidity: | <75% rh |
| Weight: | 0.15Kg |
| Housing: | Two piece, light grey (RAL 7035) |
| Housing material: | Plastic |
| Thread: | Nickel-plated brass M30 × 1.5 |
| Power cable: | 1.50 m long, 3 × 0,5 mm², light grey, insertable |
| Power consumption: | AXM217F200(230V) = 6.5 VA, 2 W AXM217F202(24V) = 2.5 VA, 1.5 W |
