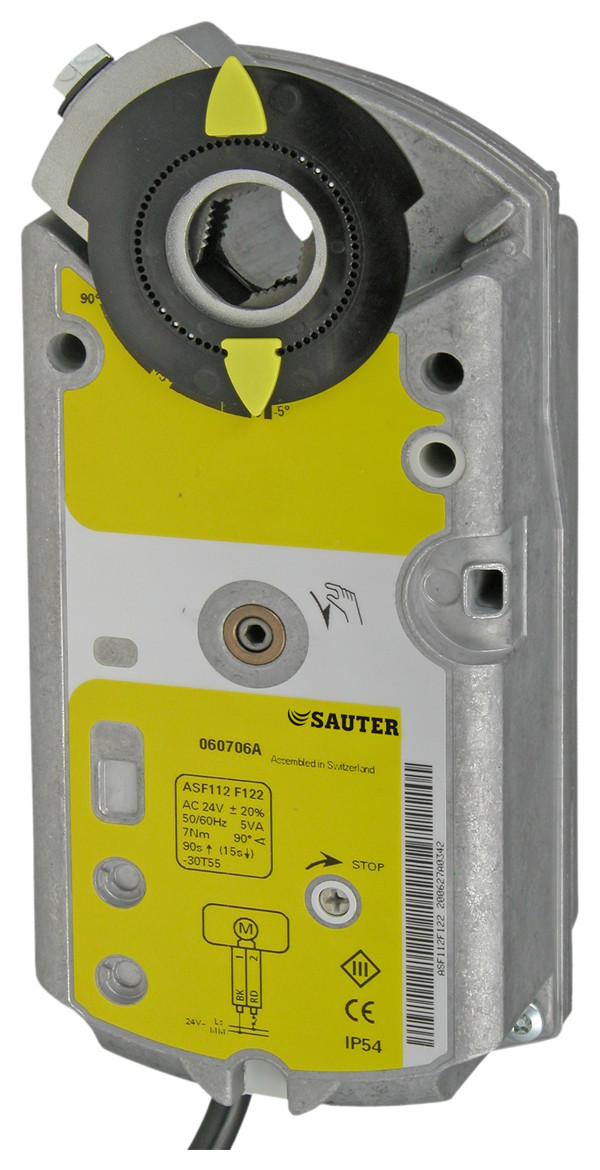

ASF113 Damper Actuator with Spring Return
Hover over image to zoom
SAUTER
£321.83 (inc VAT) £268.19 (exc VAT)
SKU:
ASF113F122
Weight:
1.30 KGS
Availability:
5 days lead time
Product Description
How energy efficiency is improved
Overload protection and end stop detection for efficient usage of energy
Features
- For operating air dampers, shut-off dampers, butterfly valves and multi-leaf dampers
- For controllers with switching (3-point) output
- Self-centring spindle adapter
- Manual adjustment using hexagon socket, including locking of gear unit
- Maintenance-free
- Suitable for all fitting positions
Technical Details
| Power Supply | |
| Power supply 24...48 V=: | ±20% |
| Parameters | |
| Torque and holding torque: | 7 Nm |
| Angle of rotation: | Max. 95° |
| Admissible damper surface area: | Approx. 1.5 m² |
| Running time for 90° motor: | 90 s |
| Running time for 90° spring: | 15 s |
| Ambient Conditions | |
| Admissible ambient temperature: | –32...55 °C |
| Admissible ambient humidity: | 5...95% rh, no condensation |
| Construction | |
| Housing: | Cast aluminium |
| Power cable: | 0.9 m, 0.75 mm² |
Overview
| Type | Control Function | Voltage | Power consumption | Weight |
| ASF113F122 | 3-point | 24 V~/24...48 V= | 3.5 W, 5.0 VA | 1.2 kg |
