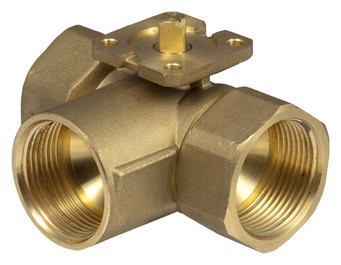

3-Way Change-Over Ball Valve (T) with Female Thread - PN40
Hover over image to zoom
Product Description
How energy efficiency is improved
Efficiency means precise changeover with minimum leakage
Features
- 3-way change-over ball valve with T-bore for use in closed circuits in heating, ventilation and air conditioning systems
- For changing over volume flows in combination with valve actuators AKM 105(S), 115(S) and AKF112, 113(S).
- Fast changeover in 6 s with valve actuator AKM115SF152
- Low torque due to collar mounted on O-ring
- Spindle with friction ring and double O-ring seal
- Ball valve with female thread as per ISO 7/1 Rp
- Body made of dezincification-resistant cast brass
- Ball made of dezincification-resistant brass, chrome-plated and polished surface
- Strainer and screw fitting available as accessories
- Water quality as per VDI2035
- French drinking water approval ACS
Technical Details
| Parameters | |
| Nominal pressure | 40 bar |
| Leakage rate, through passage | 0.0001 x Kvs value |
| Leakage rate, bypass | <0.01 x Kvs value |
| Angle of rotation | 90° |
| Ambient conditions | |
| Operating temperature | -10...130 °C, no condensation |
| Operating pressure | 40 bar (-10...50 °C) 35 bar (130 °C) |
Types
| Type | Nominal diameter (DN) | Connection ISO 7/1 | Kvs value | Weight |
| BKTI015F300 | DN 15 | Rp ½" | 12 m³/h | 0.306 kg |
| BKTI020F300 | DN 20 | Rp ¾" | 16 m³/h | 0.375 kg |
| BKTI025F300 | DN 25 | Rp 1" | 16 m³/h | 0.604 kg |
| BKTI032F300 | DN 32 | Rp 1¼" | 25 m³/h | 0.949 kg |
| BKTI040F300 | DN 40 | Rp 1½" | 49 m³/h | 1.364 kg |
| BKTI050F300 | DN 50 | Rp 2" | 73 m³/h | 2.215 kg |
