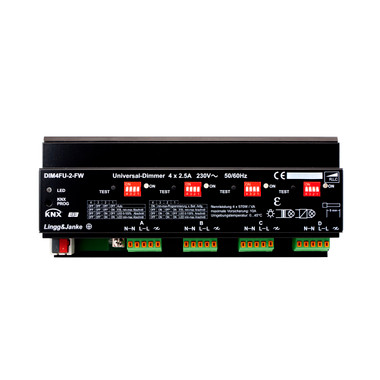

KNX Universal Dimming Actuator 4-Fold, 4X2,5A / 570W - Dim4Fu-2-Fw
Hover over image to zoom
Lingg & Janke
Product Description
The eibDUO 4-fold universal dimmers are suited for all established dimmable types of lighting. The 4 separate load terminals can be connectetd to 2.5 A loads each. The control circuits automatically identify the load and switch from leading-edge to trailing-edge control. Two dimmer load terminals (A+B or C+D) can be connected in parallel to allow a higher load.
- Energy-saving lamp
- Standard bulbs
- Retrofit LED lamps
- Mains voltage halogen lamps
- Low-voltage halogen lamps with magnetic or electronic transformer
Features
- 4 channels for 4 independent load circuits
- For dimmable LEDs
- For dimmable energy saving lamps
- Flicker-free dimming range 0-100%
- Energy meter for each channel
- Dimming capacity per channel: 2,5A 250VAC 570W
- 2 channels (AB and CD) combinable for 1000W loads
Technical Details
| Max. Group Addresses: | 76 |
| Power Supply: | 230V AC 45...65Hz |
| Protection Class: | IP 20 |
| Dimensions: | 216 x 90 x 50mm (12 M) |
| Installation: | 35mm DIN rail |
| Operating Temperature: | -5 ... +40°C |
| Max. Start-up Peak/Channel: | 26 A |
| Maximum Load Per Channel: | 2.5 A |
| Minimum Load per Channel: | 1W Ohmic |
| Power Dissipation: | At Rated Load: 4.7W per channel At Standby: 0.4W per channel |
| Short-Circuit Protection: | Electronic Instant shut-down |
| Overload Protection: | Temperature monitoring (75°C) |
| Dimming Technology: | Automatic leading/trailing Edge detection |
