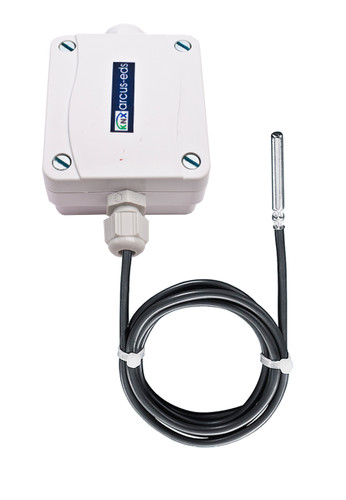

SK10-TC-HTF Sleeve Sensor

Hover over image to zoom

  • Image 1
Arcus
£162.58 (inc VAT) £135.48 (exc VAT)
Weight:
0.30 KGS
Availability:
Usually ships in 5 - 10 working days

 Product Description

SK10-TC-HTF is used for indoor / outdoor and damp locations (IP54/65/68) with sleeve sensor (PT1000) for temperature detection in liquid and gaseous media eg means of installation in a thermowell. Sensor V4A stainless steel, sleeve sensor, round, rolled stamped (moisture-proof) 50mm, Ø 6mm.

The housing is suitable for wall mounting and is mounted with 2 screws.

Features

- Air temperature ( sleeve sensor ) also weighted with external temperature
- Control functions for heating and cooling applications ( can be combined )
- Setpoint temperatures for Comfort, Standby, Economy and Protection, selectable via KNX HVAC objects
- Setpoint change via objects
- Storage of minimum- and maximum-temperature
- Heat- and frost-alarm
- Limits for temperature
- Fan control by external inputs
- Adaptation for setpoint and maximum temperatures
- Controller output 0…100% or programmable PWM for thermal actuators
- Valve rinse function
- Second temperature controller as auxiliary controller

Four logic blocks for the logical link between internal and external signals

- 10 associated logic inputs / outputs
- Heat- and cooling-request as additionally available signals
- Functions "AND, OR, NOT, XOR" for binary logic
- Functions "+ - *" for 8-bit values
- Function "=" for conditional forwarding of events

Technical Details

Measurement: Temperature
Control: Integrated
Temperature Range:

-35 .. +105°C PVC

-50 .. +180°C Silicon

-50 .. +250°C PTFE

Resolution: ± 0,01°C
Accuracy: ± 0,3°C + accuracy of the sensor
Operating Voltage: KNX Bus Voltage 21 .. 32VDC
Power Consumption: approx. 240mW ( at 24VDC )
Environment Temperature KNX-Module:

Storage: -25 .. +85°C

Operating: -25 .. +80°C

Environment Humidity KNX-Module: 0 .. 95% r.H Non Condensing
Bus Coupler: Integrated
Auxiliary Supply: Not Required
Startup with the ETS Version 4 or higher: HLK305
Curcuit Points: KNX 2-Pole Clamps ( red / black )
Protection Class: IP54/65
Housing KNX-Module: Plastic
Dimensions Housing KNX-Module: ( 72 x 64 x 40 ) mm
Article Number:

30511002 1,5m PVC

30511003 1,5m Silicon

30511055 1,5m PTFE



Downloads

Application Description
Product Description
ETS File
