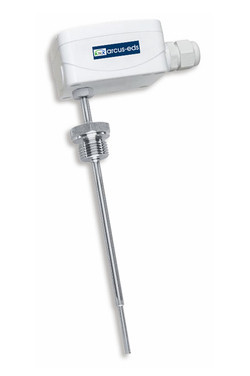

SK10-TC-ETF7 with Screw-In / Immersion Probe with Neck Tube (stepped once)

Hover over image to zoom

  • Image 1
Arcus
£333.68 (inc VAT) £278.07 (exc VAT)
SKU:
30511034 / 30511035
Weight:
0.30 KGS
Availability:
TBC - PLEASE CONTACT US

 Product Description

SK10-TC-ETF7 is temperature sensor used for indoor / outdoor and damp locations (IP54/65). Temperature sensor with neck tube and simple tapered thermowell. Very fast response time. Especially suitable for very swift temperature and control processes (eg in hot water systems).

Neck tube length: 25mm
Protection tube material: stainless steel 1.4571
Thermowell dimensions: Ø 6mm, simply tapered to Ø 4mm

Features

- Air temperature ( sensor on housing ) also weighted with external temperature
- Control functions for heating and cooling applications ( can be combined )
- Setpoint temperatures for Comfort, Standby, Economy and Protection, selectable via KNX HVAC objects
- Setpoint change via objects
- Storage of minimum- and maximum-temperature
- Heat- and frost-alarm
- Limits for temperature
- Fan control by external inputs
- Adaptation for setpoint and maximum temperatures
- Controller output 0…100% or programmable PWM for thermal actuators
- Valve rinse function
- Second temperature controller as auxiliary controller

Four logic blocks for the logical link between internal and external signals

- 10 associated logic inputs / outputs
- Heat- and cooling-request as additionally available signals
- Functions "AND, OR, NOT, XOR" for binary logic
- Functions "+ - *" for 8-bit values
- Function "=" for conditional forwarding of events

Technical Details

Measurement: Temperature
Control: Integrated
Temperature Range: -30 .. +150°C
Resolution: ± 0,01°C
Accuracy: ± 0,3°C + accuracy of the sensor
Operating Voltage: KNX Bus Voltage 21 .. 32VDC
Power Consumption: approx. 240mW ( at 24VDC )
Environment Temperature KNX-Module:

Storage: -20 .. +85°C

Operating: -20 .. +80°C

Environment Humidity KNX-Module: 0 .. 95% r.H Non Condensing
Bus Coupler: Integrated
Auxiliary Supply: Not Required
Startup with the ETS Version 4 or higher: HLK305
Curcuit Points: KNX 2-Pole Clamps ( red / black )
Protection Class: IP54/65
Housing KNX-Module: Plastic
Dimensions Housing KNX-Module: ( 72 x 64 x 40 ) mm
Article Number:

30511034 100mm

30511035 150mm

30511036 200mm



Downloads

Application Description
Product Description
ETS File
