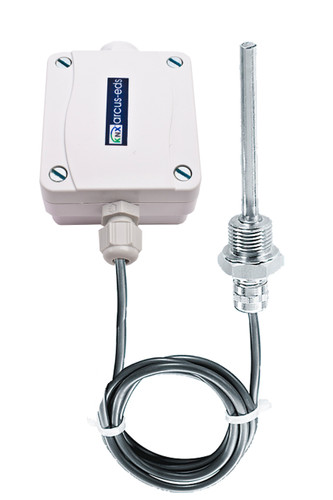

SK10-TC-ESTF with Screw-In Immersion Probe

Hover over image to zoom

  • Image 1
Arcus
£180.18 (inc VAT) £150.15 (exc VAT)
Weight:
0.30 KGS
Availability:
Usually ships in 5 - 10 working days

 Product Description

SK10-TC-ESTF is KNX-Sensor for temperature used for indoor / outdoor and damp locations (IP54/65). The PT1000 sensor is interchangeable in an immersion sleeve (Ø 8 mm pressure 40 bar) made of V4A with cable channels. It is utilized for temperature detection in liquid or gaseous media in heating, ventilation and air conditioning technology.

The housing is suitable for wall mounting and is mounted with 2 screws.

Features

- Air temperature ( screw-In / immersion sleeve ) also weighted with external temperature
- Control functions for heating and cooling applications ( can be combined )
- Setpoint temperatures for Comfort, Standby, Economy and Protection, selectable via KNX HVAC objects
- Setpoint change via objects
- Storage of minimum- and maximum-temperature
- Heat- and frost-alarm
- Limits for temperature
- Fan control by external inputs
- Adaptation for setpoint and maximum temperatures
- Controller output 0…100% or programmable PWM for thermal actuators
- Valve rinse function
- Second temperature controller as auxiliary controller

Four logic blocks for the logical link between internal and external signals

- 10 associated logic inputs / outputs
- Heat- and cooling-request as additionally available signals
- Functions "AND, OR, NOT, XOR" for binary logic
- Functions "+ - *" for 8-bit values
- Function "=" for conditional forwarding of events

Technical Details

Measurement: Temperature
Control: Integrated
Temperature Range:

-35 .. +105°C PVC

-50 .. +180°C Silicon

Resolution: ± 0,01°C
Accuracy: ± 0,3°C + accuracy of the sensor
Operating Voltage: KNX Bus Voltage 21 .. 32VDC
Power Consumption: approx. 240mW ( at 24VDC )
Environment Temperature KNX-Module:

Storage: -20 .. +85°C

Operating: -20 .. +80°C

Environment Humidity KNX-Module: 0 .. 95% r.H Non Condensing
Bus Coupler: Integrated
Auxiliary Supply: Not Required
Startup with the ETS Version 4 or higher: HLK305
Curcuit Points: KNX 2-Pole Clamps ( red / black )
Protection Class: IP54/65
Housing KNX-Module: Plastic
Dimensions Housing KNX-Module: ( 72 x 64 x 40 ) mm
Article Number:

30511008 50mm PVC

30511009 100mm PVC

30511010 50mm Silicon

30511011 100mm Silicon



Downloads

Application Description
Product Description
ETS File
