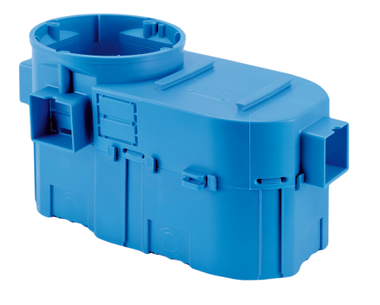

SE2x60 and SE2x60G boxes are prepared to mount specialized electric and electronic devices. The inside was widened to make it possible to put extra elements next to the built-up collar of a box of a steering device. There is also a possibility to use the whole interior of a box for putting different devices in it. The box is closed with a PL60 cover. The box has a serial construction and can be combined into multiple blocks. It is made of two separate elements that are put together by catches. This gives a possibility to mount larger elements inside. To connect electronic conductors it is advisable to use an LPA12-1.5 connector strip with a pad

Properties

- Self-extinguishing
- Halogen free
- Heat resistance 960 °C
- Acid-proof screws

Features

- Conduits in the bottom and walls rectangular knockouts for flat conductors
- Hole spacing for mounting - 60 mm
- 2 mounting screws in the set

Technical Details

Accessories

- Signalling cover PS60
- Cover WS60 or PL60
- Interconnector KD12
- Extension rings PD 60x12, PD 60x24, PD60x30
- Screws W16, W25, W40
