Profile Type OTER - 1 m.
Hover over image to zoom
Product Description
OTER is a surface profile with the possibility to adjust the lighting angle, using various end caps. To be used in the kitchen and household compartments.
Suitable for LED Strips 2 x 10mm
Options
COVERS | |||||
| BASIC:
|  Transparent |  Milky |  Frozen |  Frosted |  Milky Frosted |
|
LENS 15 |
LENS 30 | ||||

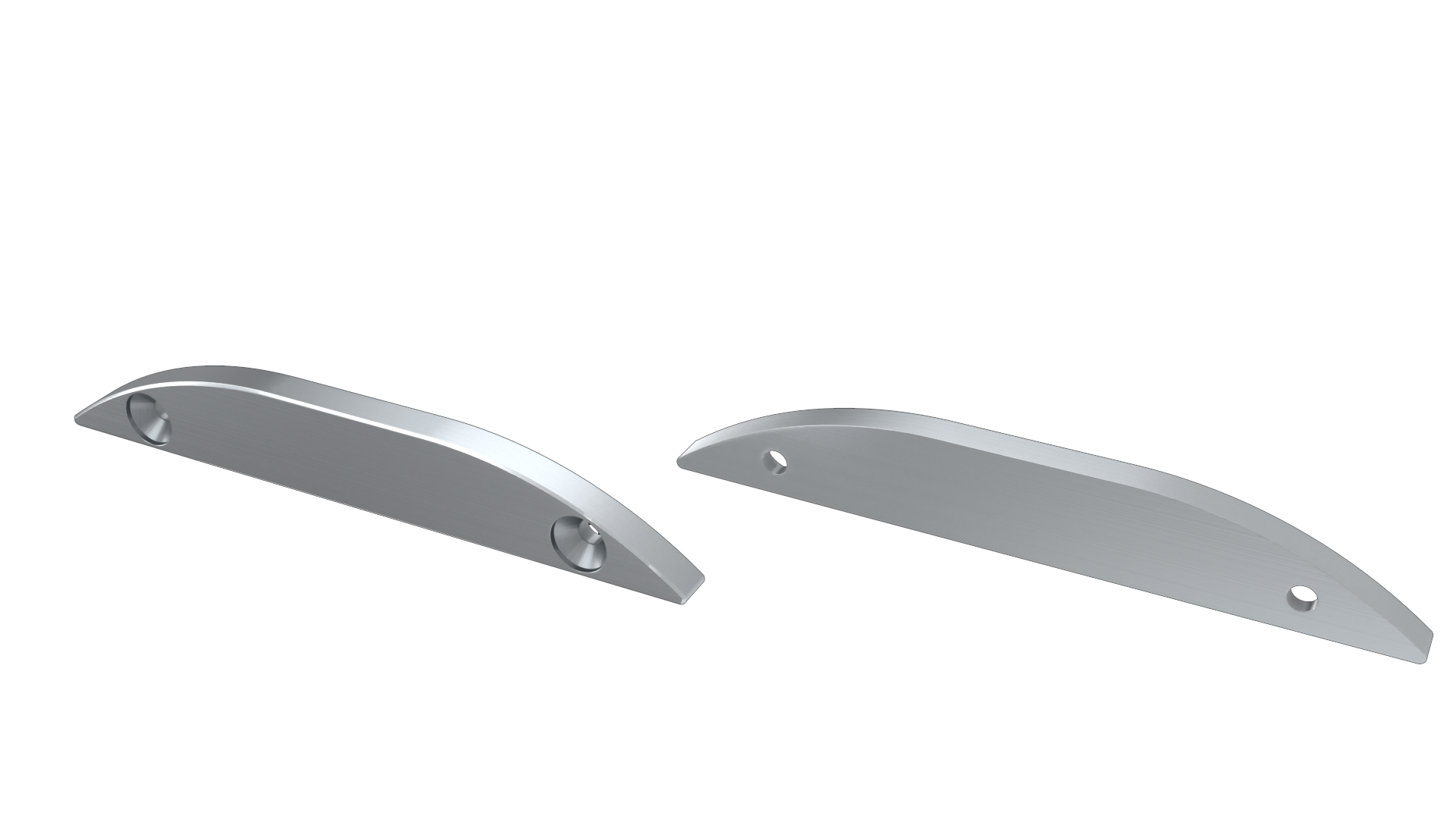

END CAPS | |||||
| PLASTIC: |
Gray |
Black |
White |
Inox | |
| ALUMINIUM: |
Silver |
Black |
15° Silver |
30° Silver | |
Installation
|
Installation instruction for profile OTER with a BASIC cover using mounting screw |
End result of the installation of profile OTER with a BASIC cover using mounting screw |
|

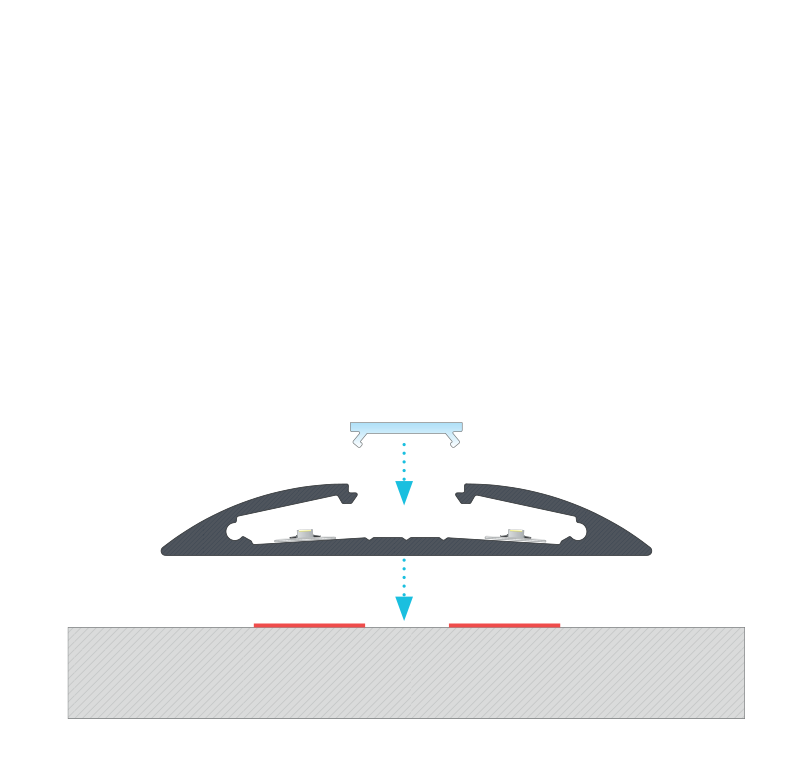

Installation instruction for profile OTER with a BASIC cover using double-sided tape |

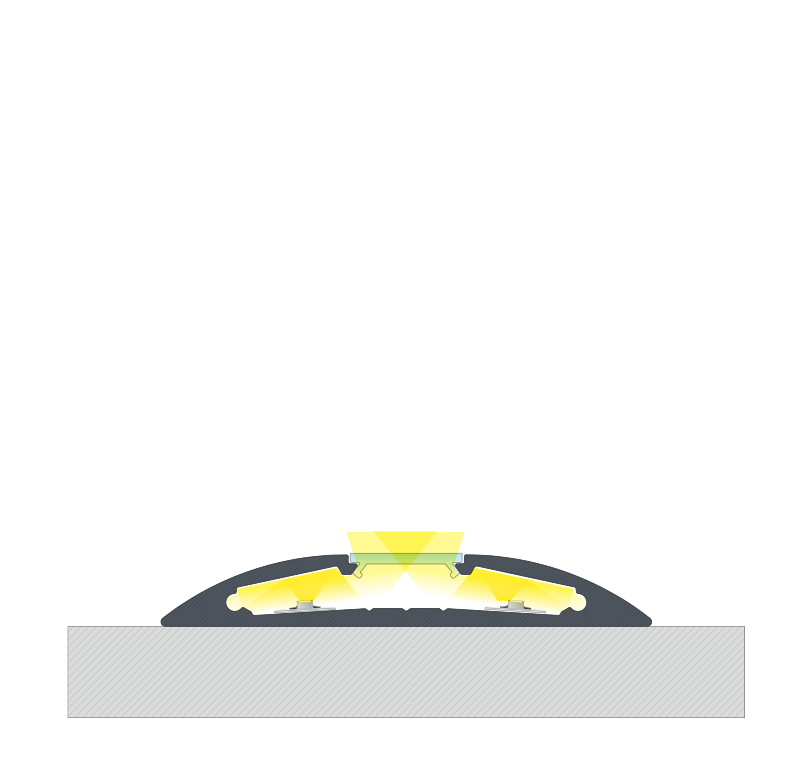

End result of the installation of profile OTER with a BASIC cover using double-sided tape |
|
Installation of OTER profile using (1) end caps at 30 degrees, (2) end caps at 15 degrees, (3) end caps at 0 degrees |

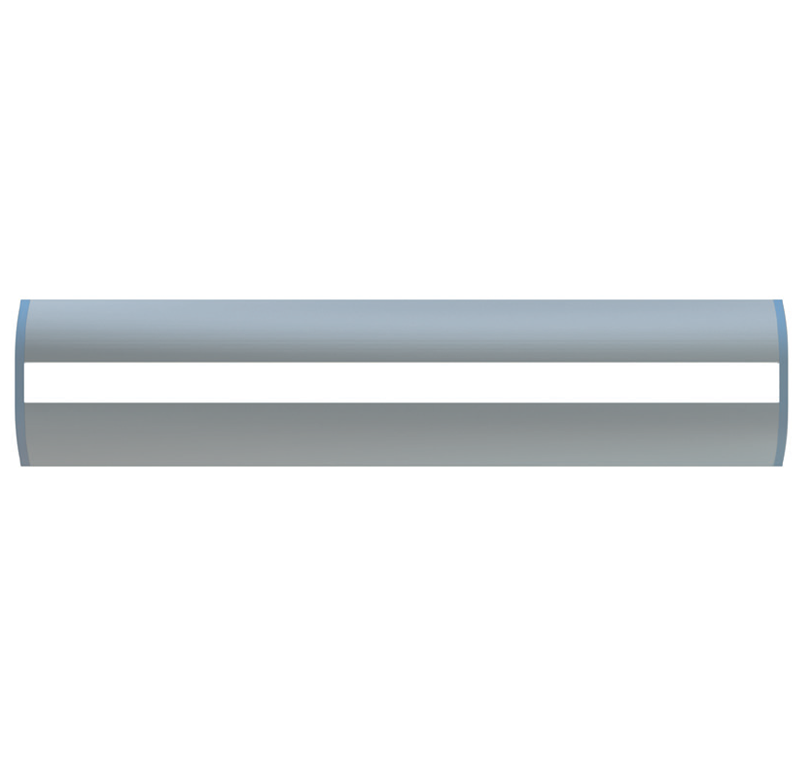

Assembly of OTER profile. Top view |
|
Assembly scheme for elements of the lighting system using OTER profile and (1) a BASIC cover (2) two LED strips, (3) an end cap without hole, (3a) an end cap with hole, (4) and mounting screws |
Assembly scheme for elements of the lighting system using OTER profile at 30 degrees and (1) a BASIC cover, (2) two LED strips, (3) an end cap with support at 30 degrees without a hole (3a) an end cap with support at 30 degrees and with hole and (4) mounting screws |
