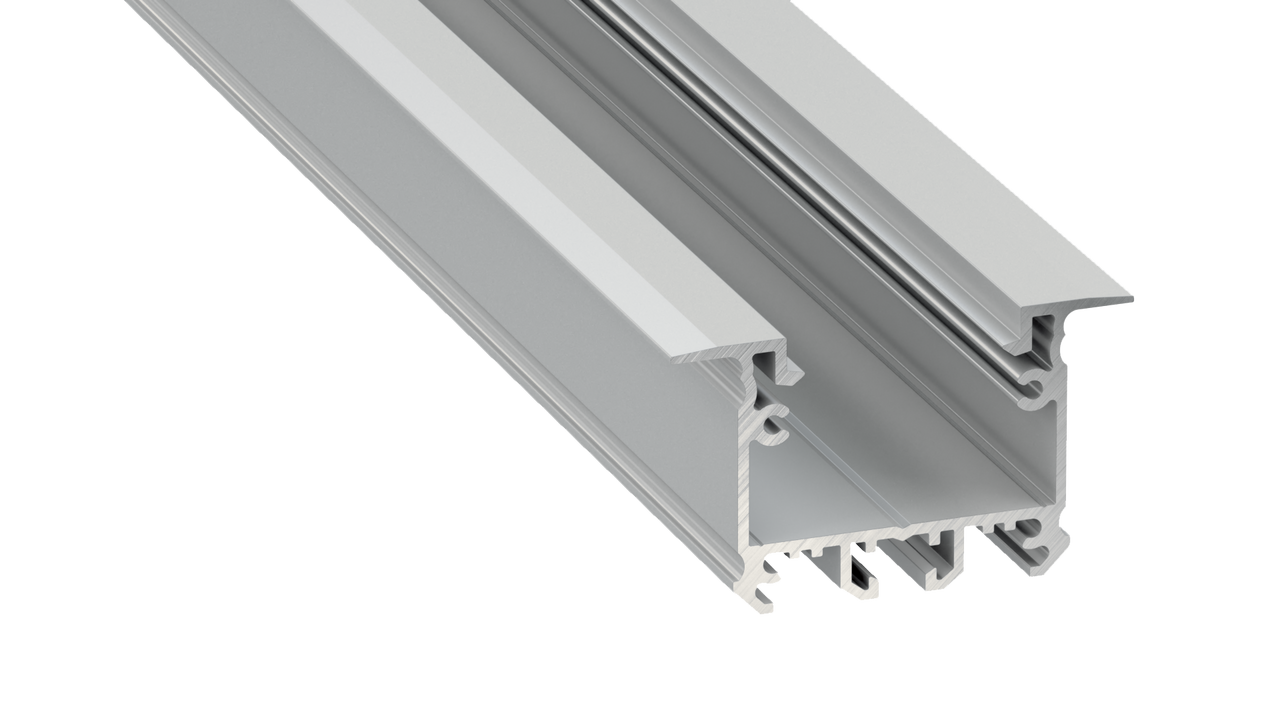

AILAin is a recessed architectural profile. Designed to be used in office spaces and public utility premises.

Suitable for LED Strips 2 x 12 mm wide.

Options


COVERS

DOUBLE:

Transparent

Transparent

Milky

Milky

Frozen
Frozen
Frosted
Frosted
Milky Frosted
Milky Frosted


END CAPS

AILAin:

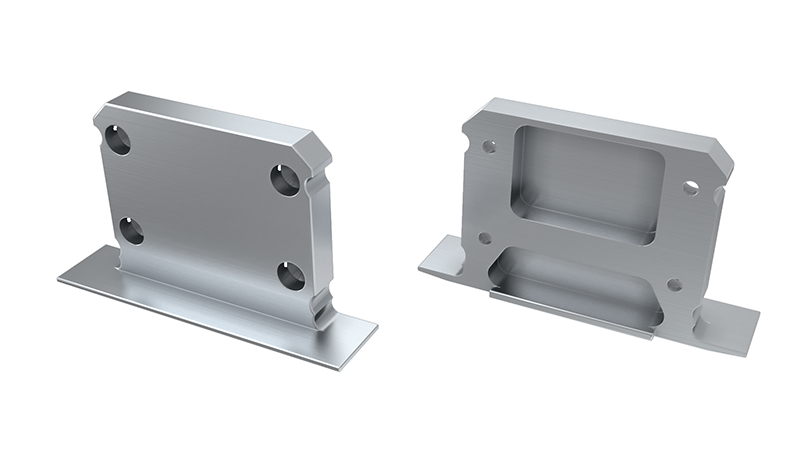

End Cap White

Aluminium End Caps White

End Cap Silver

Aluminium End Caps Silver














MOUNTING*

Connectors:




Inter-Profile Connectors



Inter-Profile AILA Connector

Mounting Springs


Mounting Profile Type M3


Mounting Profile Type M4


*
Mounting accessories are sold separately.

Installation

InAil Install 1

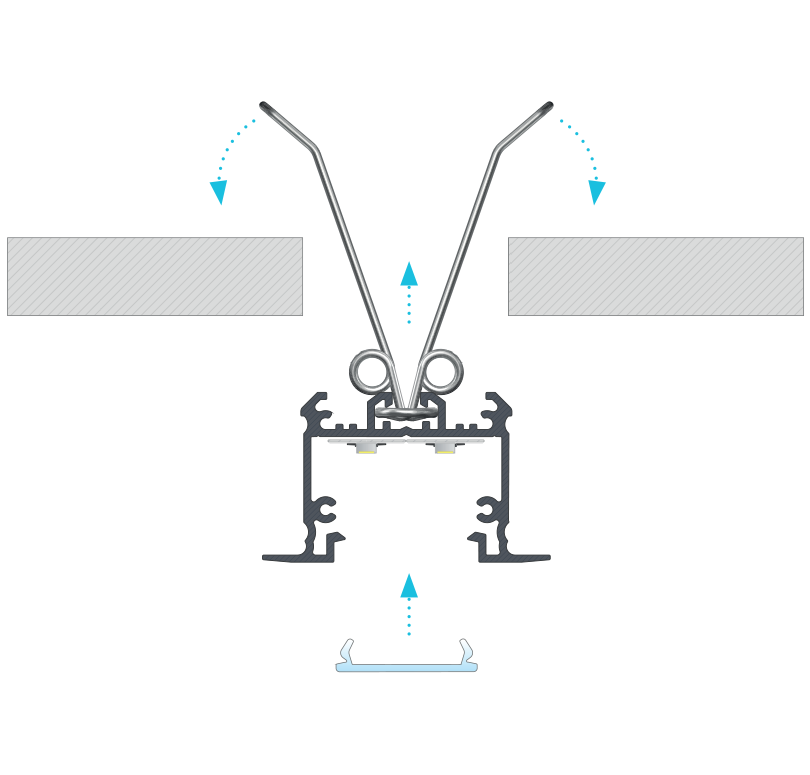

Installation instruction for profile AILAin with a DOUBLE cover using mounting springs.

InAil Install 2

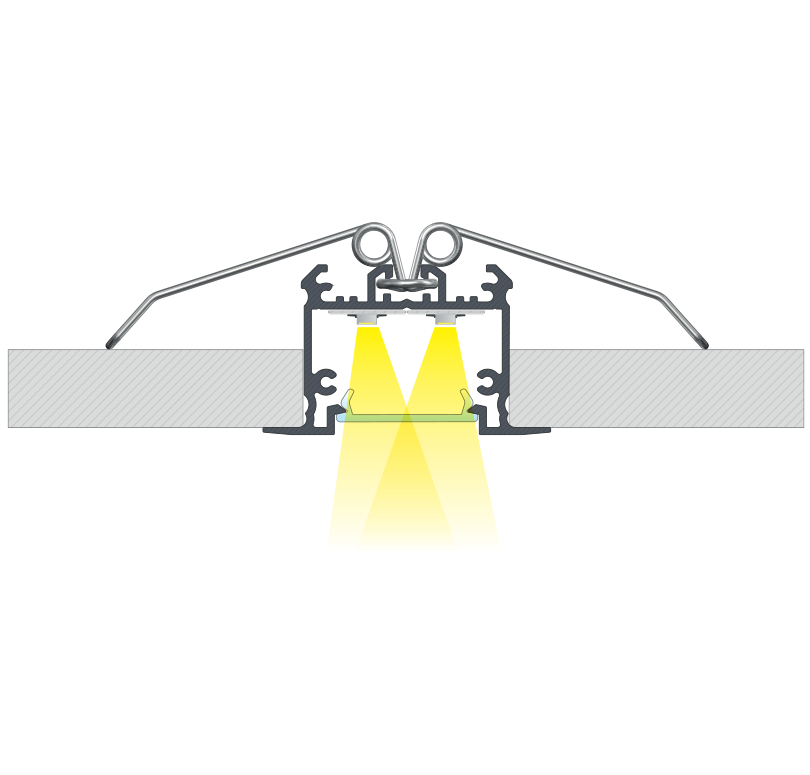

End result of the asembly of profile AILAin with a DOUBLE cover using mounting springs.

InAil Install 3

Instruction of assembly of profile AILAin with DOUBLE cover using inter-profile AILA connector, mounting profile AILA M3 and mounting springs

InAil Install 4

End result of assembly of profile AILAin with DOUBLE cover using inter-profile AILA connectormounting profile AILA M3 and mounting springs

InAil Install 5




        1. Profile AILAin

        2. DOUBLE Cover

        3. End Cap

        4. Mounting Profile AILA M3

        5. Net

        6. Gypsum

        7. Paint

InAil Install 6

Assembly scheme for elements of the lighting system in ceiling using profile AILAin, (1) DOUBLE cover, (2) LED strips, (3) end caps, (4) AILA inter-profile connector , (5) mounting profile AILA M3, (6) end cap AILA M3 with basic finish, (6a) end cap AILA M3 with full finish, (7) mounting springs
