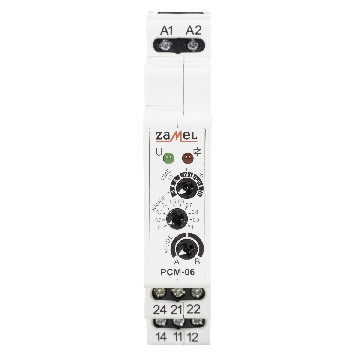

PCM-06/U - Time Relay 12-240V AC/DC
Hover over image to zoom
ZaMeL
£29.87 (inc VAT) £24.89 (exc VAT)
SKU:
PCM-06/U
Weight:
0.10 KGS
Availability:
Next Day Delivery
Current Stock:
1
Product Description
The two functional time relay PCM-06 is used for realizing a delay shutting down function in mode A and a delay switching on function in mode B.
The relay is released by the power supply voltage.
The relay will operate up to ten minutes after current decay in mode A, therefore, this type of mode can be used for operating the bath fans.
Features
- Mono modular casing
- Relay output two change over contacts with max. 8A capacity
- Relay indicator - LED red
- Power supply indicator: LED green
- Working mode: switch on delay
- Time measure accuracy
- Switch off delay
Technical details
| Mounting method | DIN Rail Mounted |
| Power supply terminals | IN |
| Rated supply voltage | 12-240 V |
| Time setting range t | 0,1 s ÷ 10 days (step + float) |
| Rated temperature | - 20/45 °C |
| Rated frequency | 50/60 Hz |
| Parameters of relay contacts | 1NO - 10 A / 250 V AC1 2500 VA |
| Protection degree | IP20 |
| Dimensions | 90 x 17.5 x 66 mm |
